Kee Attach® Mobile Rope Access Anchor

Stay anchored to safety

Kee Attach^® Mobile Rope Access Anchor is a single user product solution designed to abseil the façades of buildings. It incorporates a paired anchor device for use in rope access operations in accordance with the Industrial Rope Access Trade Association (IRATA) International Code of Practice and/or BS 7985 – Code of practice for the use of rope access methods for industrial purposes. Kee Attach^® Mobile Rope Access Anchor is compliant to CSA Z259.15-17

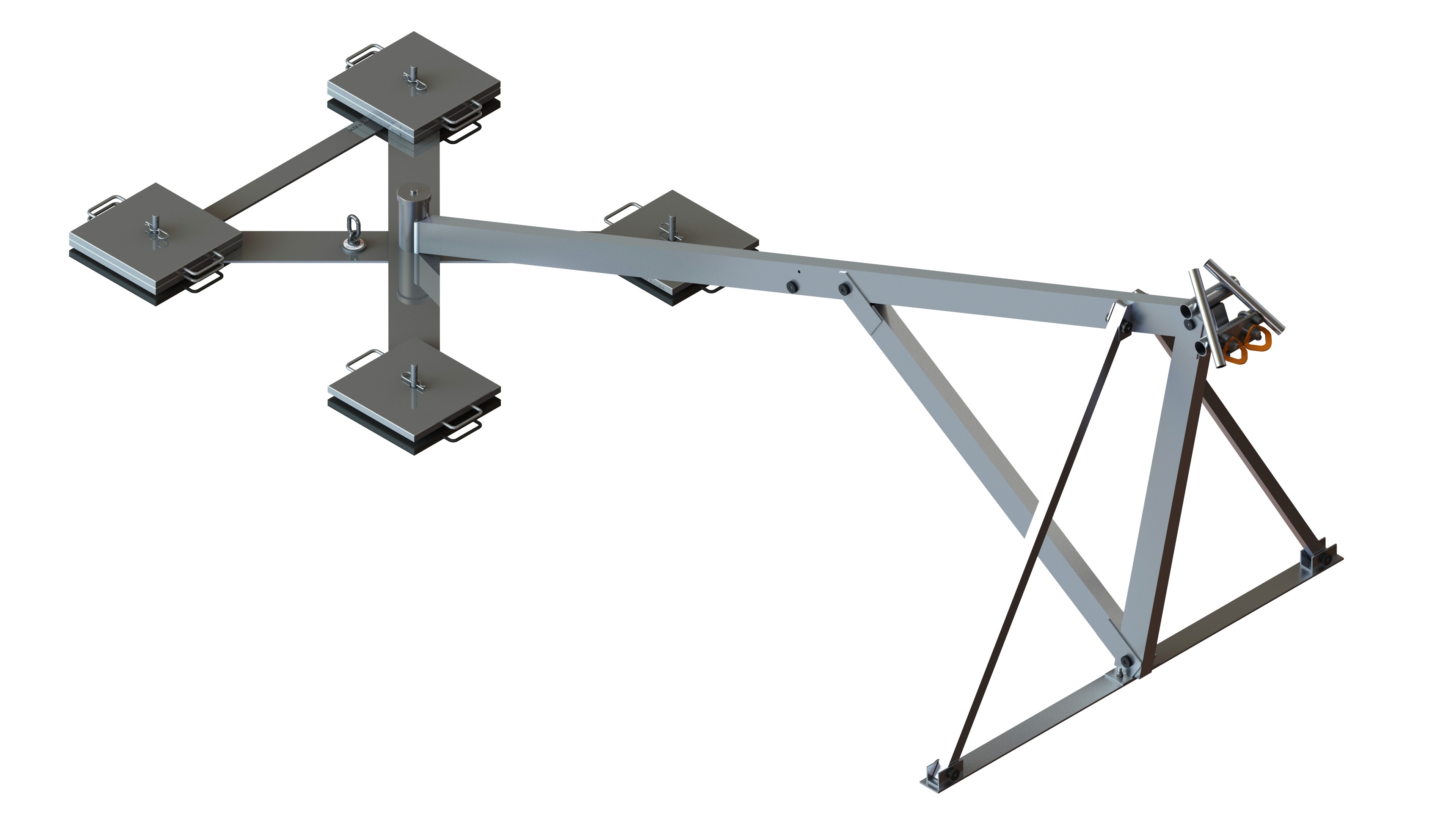

Kee Anchor Mobile Rope Access Anchor Mediun

Benefits of Kee Attach^® Mobile Rope Access Anchor

Counterweight System

Kee Attach^® Mobile Rope Access Anchor is a single user product solution designed for fall restraint or fall arrest applications. It is compliant to CSA Z259.16-15. It’s the only counterweight rope access system that meets the CSA 22.5 kN loading requirements.

Mobile

Kee Attach^® Mobile Rope Access Anchor is suitable for use in locations where there are no suitable permanent anchors for the attachment of Personal Fall Protection Equipment (PFPE) utilized for the purpose of performing rope access operations.

Tested & Inspected

Kee Attach^® Mobile Rope Access Anchor has been tested to:- Z259.15-17 Anchorage connectors. Inspection in accordance with National Standards and manufacturers recommendations. Z259.17-16 Selection and use of active fall-protection equipment and systems.

Non-penetrating

Kee Attach^® Mobile Rope Access Anchor, when correctly assembled, provides an ‘internally force- balanced’ system, which does not require anchoring to the roof or other structure.

Heavy-duty

Kee Attach^® Mobile Rope Access Anchor is intended for one user plus tools to a max 136 kg SWL.

Lightweight

The Kee Attach^® Mobile Rope Access Anchor has been designed to be lightweight and breaks down into several components for easy transportation and installation on Rooftop.

Key Features

Adaptable

Engineered for different roof types.

Modular and Versatile

Can be used in conjunction with other products to provide a complete fall protection plan.

Easy to install

It’s simply installed with hand tools so there’s no need to buy additional equipment.

Safety First

Rest assured that the Kee Attach^® Mobile Rope Access Anchor meets all of the requirements of the relevant standards and is safe to use.

Highest Standards for Access Safety

Federal [Canada] Canada Occupational Safety and Health Regulations, SOR/86-304, Sections 12.01 to 12.09
Alberta Occupational Health and Safety Code, 191/2021 Part 9, Fall Protection Sections 138 - 161
British Columbia Occupational Health and Safety Regulations, B.C. Reg. 296/97 Part 11, Fall Protection, Sections 11.1 to 11.10
Manitoba Workplace Safety and Health Regulation, Man. Reg. 217/2006 Part 14, Fall Protection, Sections 14.1 to 14.29
New Brunswick General Regulation -N.B. Reg. 91-191 Part VII, Protective Equipment, Sections 49 - 51
Newfoundland and Labrador Occupational Health and Safety Regulations, 2012, N.L.R. 5/12 Part X, Fall Protection, Sections 138 to 146
Northwest Territories Occupational Health and Safety Regulations, R-039-2015 Part 7, Personal Protective Equipment, Sections 103 to 109 and Part 9 Safeguards, storage, warning signs and signals, Sections 118 to 124

Nova Scotia Workplace Health and Safety Regulations, N.S. Reg. 52/2013 Part 21, Fall Protection, Sections 21.1 to 21.4
Nunavut Occupational Health and Safety Regulations. R-039-2015, Part 7 Sections 104 to 109, and Part 9, Sections 118 to 122
Ontario Construction Projects, O. Reg. 213/91 Sections 26 - 26.9 and Industrial Establishments, R.R.O. 1990, Reg. 851 Section 85
Prince Edward Island Fall Protection Regulations, EC2004-633
Quebec Regulation respecting occupational health and safety, O.C. 885-2001 Division XXX, Means and Equipment for Individual and Group Protection Sections 347 - 354.1 and Safety Code for the construction industry R.R.Q. 1981, c. S-2.1, r. 6 Division II, General Provisions Sections 2.9.1 to 2.9.3, Safety measures
Saskatchewan Occupational Health and Safety Regulations, 2020 Sections 9-2 - 9-5
Yukon Occupational Health and Safety Regulation, O.I.C. 2006/178 Protective Equipment and Clothing - Fall Arrest Sections 1.37 to 1.43

Canadian National Standards (CSA)

CAN/CSA-Z91: Health and Safety Code for Suspended Equipment Operations - User Standard
CAN/CSA-Z271: Safety Code for Suspended Platforms - Design Standard
CAN/CSA-Z259.16-15 Design of Active Fall Protection Systems

Extensively tested by NEL to BS EN 795: Protection against falls from a height
Kee Anchor® fully complies with Type E of BS EN 795: Protection against falls from height
Conforms to BS7883 - Code of practice for the design, selection, installation, use and maintenance of anchor devices conforming to BS EN 795 & ISO 14567
The unit is fully galvanized to BS EN ISO 1461: Hot Dip Galvanized Coatings Specification and test method
