Kee Step® Mini Stepover

Small in size, big on safety

Roof surfaces can be extremely dangerous with varying levels, uneven surfaces, and multiple obstructions that need to be overcome. Kee Step Mini Step-Overs create a safe way to cross roof obstructions, such as pipework, plant equipment, and conduits. Suitable for use on a variety of roof types where there are changes in roof levels, our step-overs create a safe, anti-slip, level walking surface onto and across roofs.

Key Features

Safely get Over Obstacles

A simple way to traverse obstacles such as pipework, cable trays, low level walls, and changes in level.

Range of Sizes

Designed for modern roof types including trapezoidal, profile, composite, or built up and standing seam metal roofs.

Suitable for All Roof Types

The system can be used on membrane, asphalt, concrete, and PVC roof finishes.

Standard Kit Formats

Comes in a kit form in standard sizes and can be quickly installed to create a safe working area.

Non-slip Treads

Steps and a traverse options are made from nylon or aluminium treads with enhanced slip resistance.

High Fire Rating

The nylon treads are fire rated to Class HB of UL94 and will not present a fire risk.

No Welding Needed

Made from tubular fittings and standard modules so it can be installed on site without any welding.

Long Lasting

Available in aluminum or galvanized steel for long-lasting protection, corrosion resistance and strength.

Standards

Federal [Canada] Canada Occupational Safety and Health Regulations, SOR/86-304, Sections 12.01 to 12.09
Alberta Occupational Health and Safety Code, 191/2021 Part 9, Fall Protection Sections 138 - 161
British Columbia Occupational Health and Safety Regulations, B.C. Reg. 296/97 Part 11, Fall Protection, Sections 11.1 to 11.10
Manitoba Workplace Safety and Health Regulation, Man. Reg. 217/2006 Part 14, Fall Protection, Sections 14.1 to 14.29
New Brunswick General Regulation -N.B. Reg. 91-191 Part VII, Protective Equipment, Sections 49 - 51
Newfoundland and Labrador Occupational Health and Safety Regulations, 2012, N.L.R. 5/12 Part X, Fall Protection, Sections 138 to 146
Northwest Territories Occupational Health and Safety Regulations, R-039-2015 Part 7, Personal Protective Equipment, Sections 103 to 109 and Part 9 Safeguards, storage, warning signs and signals, Sections 118 to 124

Nova Scotia Workplace Health and Safety Regulations, N.S. Reg. 52/2013 Part 21, Fall Protection, Sections 21.1 to 21.4
Nunavut Occupational Health and Safety Regulations. R-039-2015, Part 7 Sections 104 to 109, and Part 9, Sections 118 to 122
Ontario Construction Projects, O. Reg. 213/91 Sections 26 - 26.9 and Industrial Establishments, R.R.O. 1990, Reg. 851 Section 85
Prince Edward Island Fall Protection Regulations, EC2004-633
Quebec Regulation respecting occupational health and safety, O.C. 885-2001 Division XXX, Means and Equipment for Individual and Group Protection Sections 347 - 354.1 and Safety Code for the construction industry R.R.Q. 1981, c. S-2.1, r. 6 Division II, General Provisions Sections 2.9.1 to 2.9.3, Safety measures
Saskatchewan Occupational Health and Safety Regulations, 2020 Sections 9-2 - 9-5
Yukon Occupational Health and Safety Regulation, O.I.C. 2006/178 Protective Equipment and Clothing - Fall Arrest Sections 1.37 to 1.43

Frequently Asked Questions

General

- What size of obstructions can be covered with a Kee Step Mini Stepover?

  Kee Step Mini Stepovers are available in sizes ranging from 8"(H) x 9"(W) to 18"( H) x 40"(W). Custom lengths are available through our design team.
- Are Kee Step Mini Stepovers designed for indoor or outdoor use?

  Both! When used on rooftops the mini-step is designed with a custom PVC weight to eliminate the need for rooftop penetrations and provide wind resistance. For indoor or ground-based applications simply bolt the base flange to the surface.
- Do I need railing on either side of my Kee Step Mini Stepover?

  No, Kee Step Mini Stepovers are designed just below the height at which OSHA requires a stair railing. If clearance over a higher obstacle is needed please review our Kee Walk rooftop crossover page here

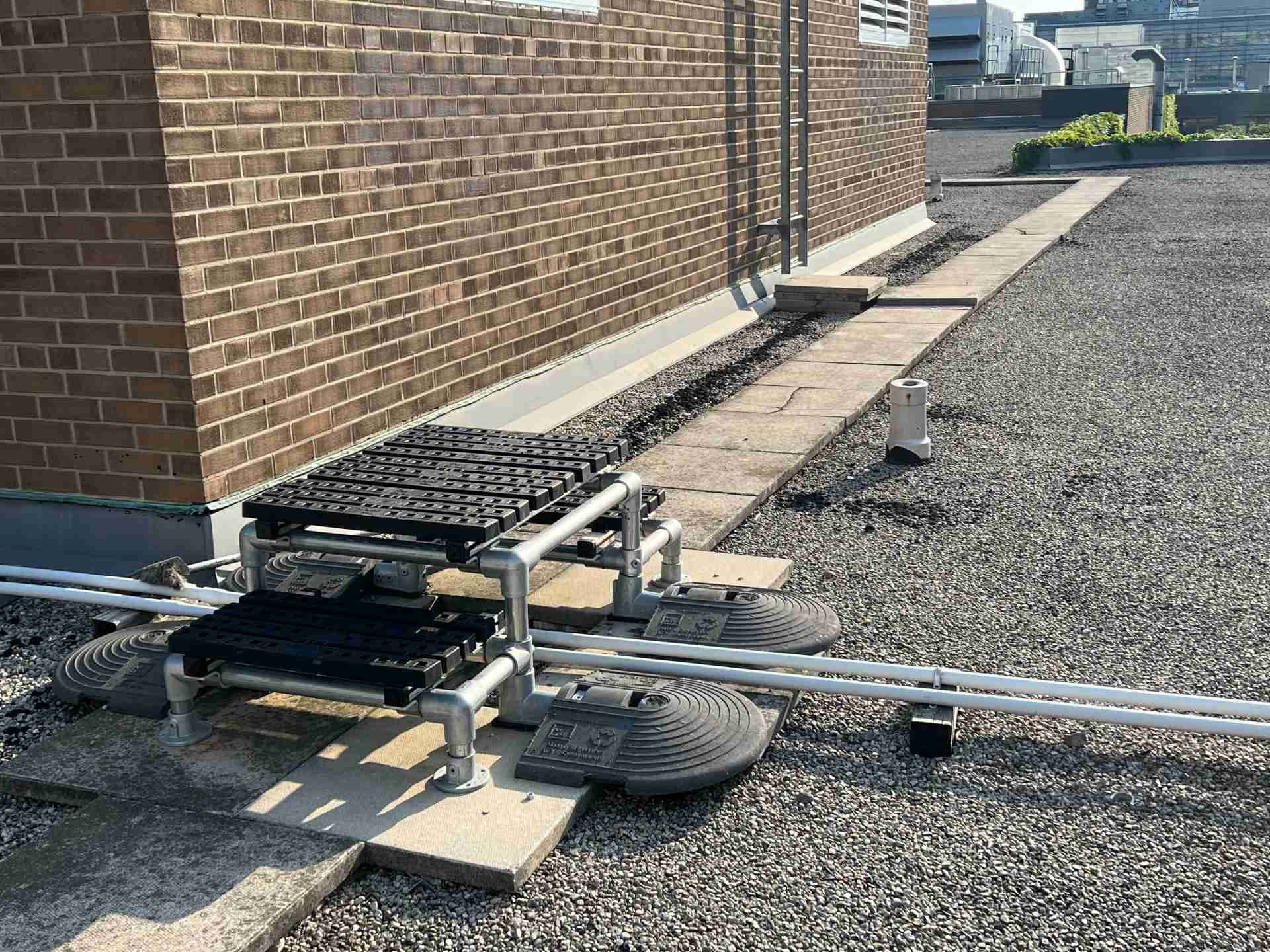

- Where would I use a Kee Step Mini Stepover?

  Roofs are cluttered with potential trip hazards, with conduit, ammonia lines, and ductwork commonly crisscrossing the walk path. Where a walk path and small obstruction meet we recommend installing Kee Step Mini Stepovers to eliminate the trip hazard and protect your worker from a potential injury.
- How long will a Kee Step Mini Stepover last on my roof?

  Unlike it’s lumber-built alternative, Kee Step Mini Stepovers are designed using galvanized components, PVC weights, and nylon treads – all with an extremely long life expectancy even in harsh rooftop environments.

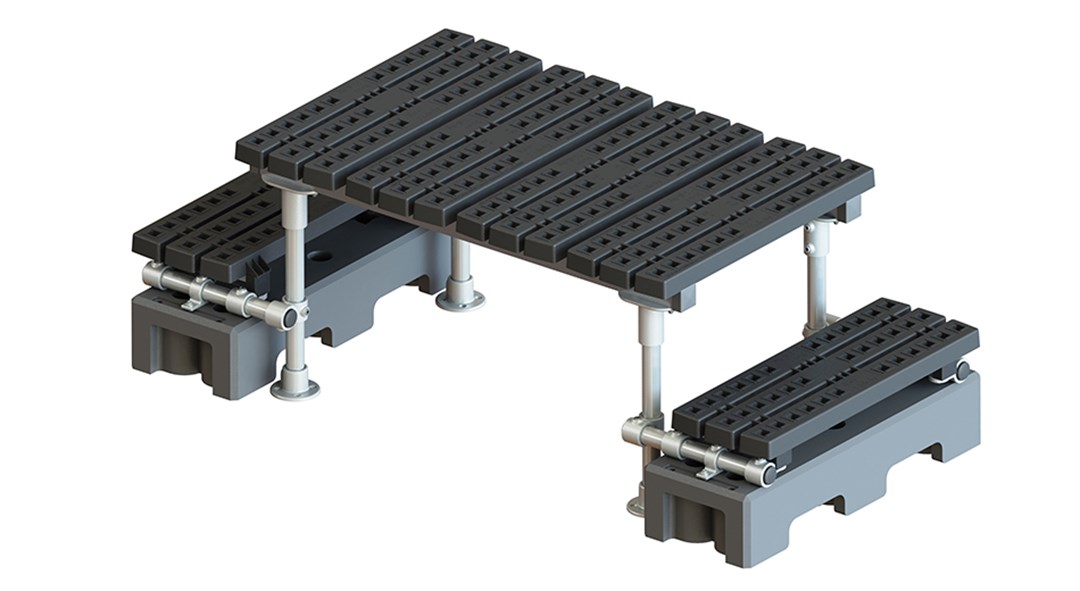

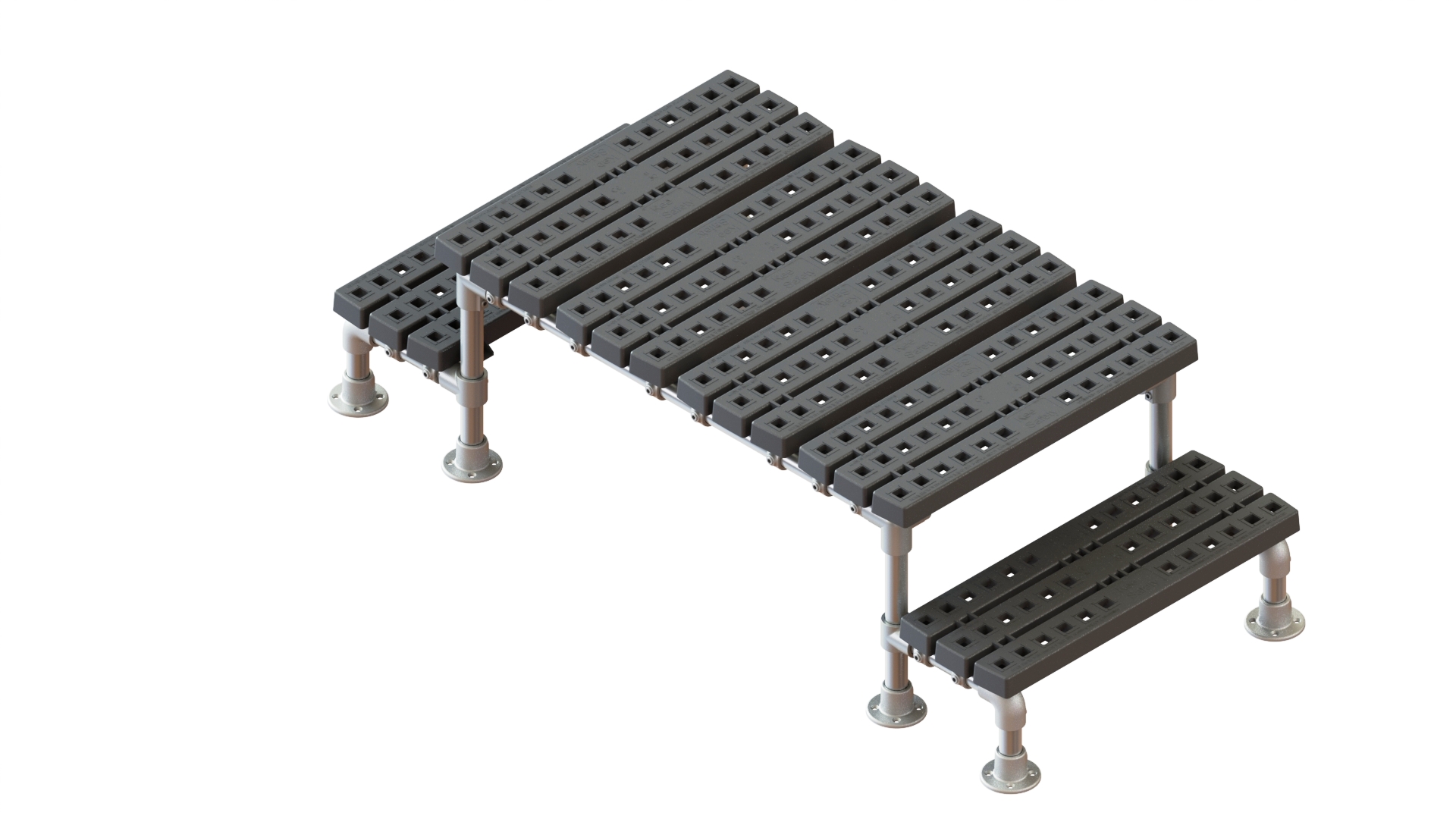

Mini Step Module Kits

Available as kits, the Step-Overs are supplied as flat packed with full assembly instructions to allow quick and easy installation.

Two height clearance options, 7.8 inches and 15.7 inches
Three lengths available, 3, 4, and 5 tread options
Two fixing options, free standing and fixed

Two options are available, free standing, which the unit stands on two 57.3 lbs base weights, or fixed, which can be attached to suitable securing surfaces.
