No barriers to a safer roof with Kee Guard safety railing

Kee Guard is the industry leading modular, free-standing safety railing system that is not fixed directly to the roof membrane. It is a reliable, permanent safety guardrail barrier for a roof edge that is OH&S compliant and appropriate for almost any flat roof up to a 5° slope. – keeping your workforce safe. Kee Guard is the safety rail standard recognized for superior rooftop fall protection by companies all over the world.

rooftop fall protection | fall protection equipment | safety rail | safety guardrail | rooftop railings | collective fall protection

A Comprehensive Range

The system is available for different roof types, either for use where a restraining wall such as a parapet is in place or where the rooftop is completely open around the perimeter. The KeeGuard^® rooftop guardrail system can be used for retrofitting older buildings as well as for new constructions.

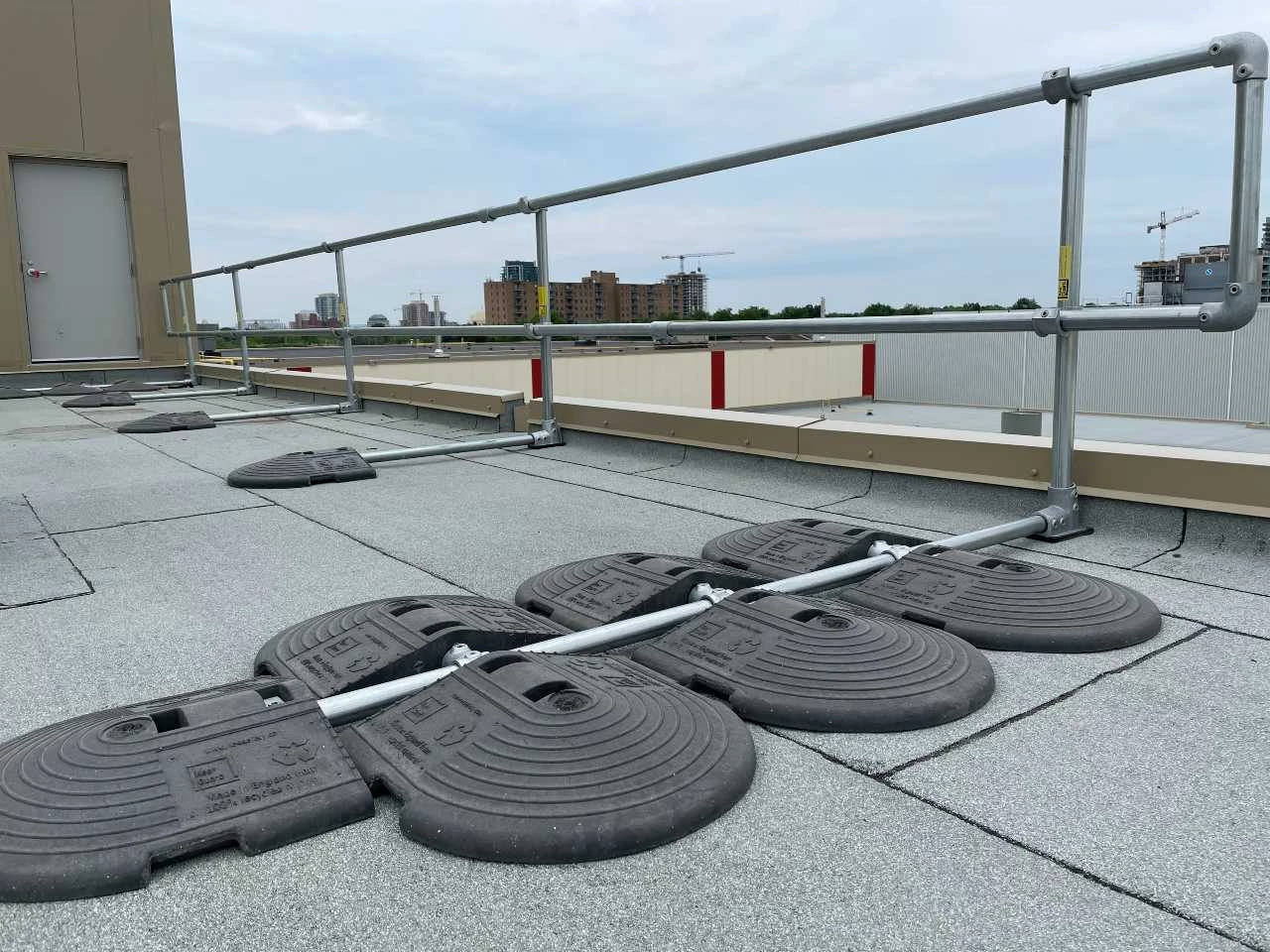

Kee Guard^® for Narrow Rooftop Spaces

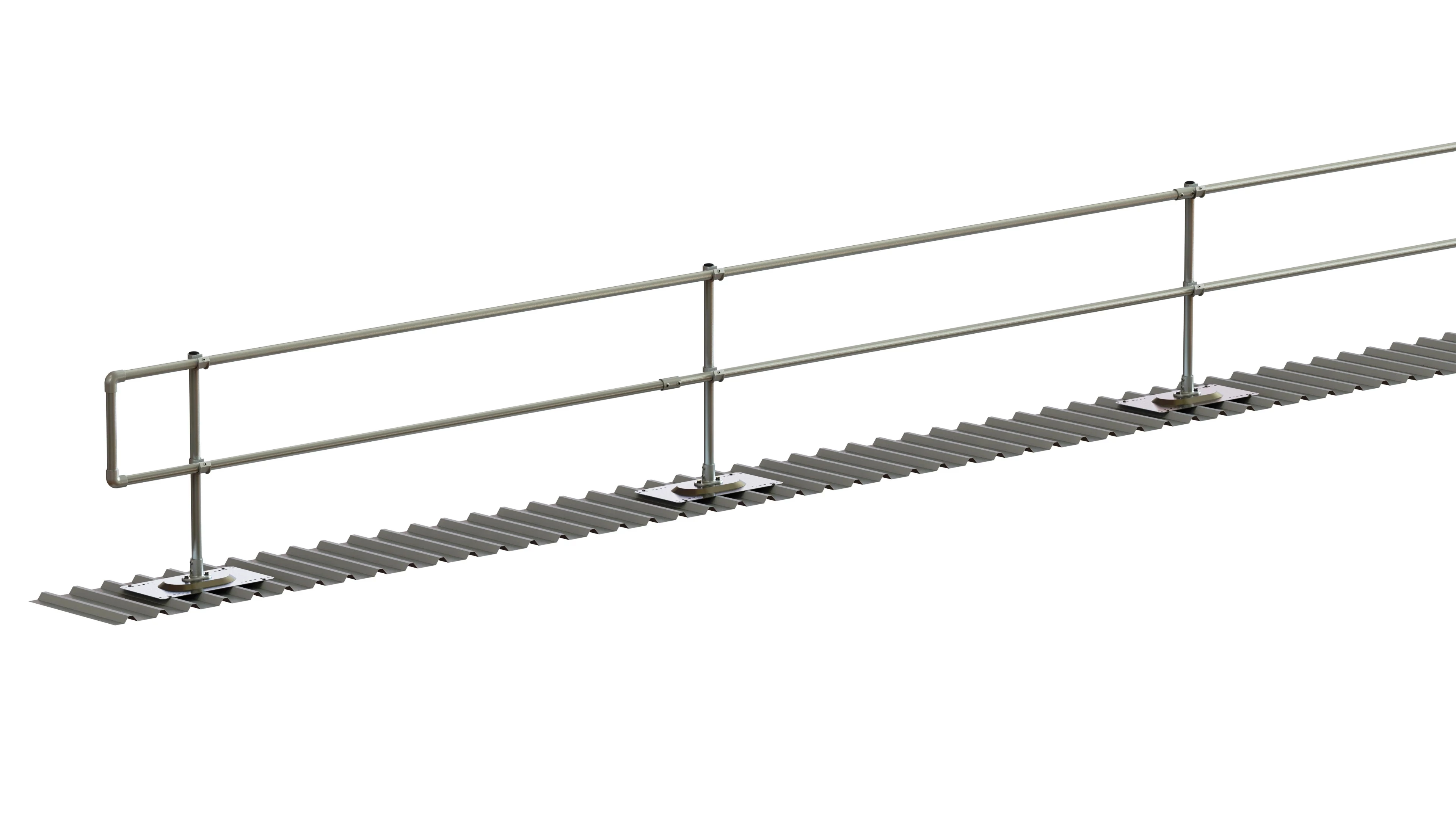

Kee Guard^® for Metal Roofs

Ladder Railing System | non-penetrating fall protection solution | rooftop safe access | roof fall protection systems

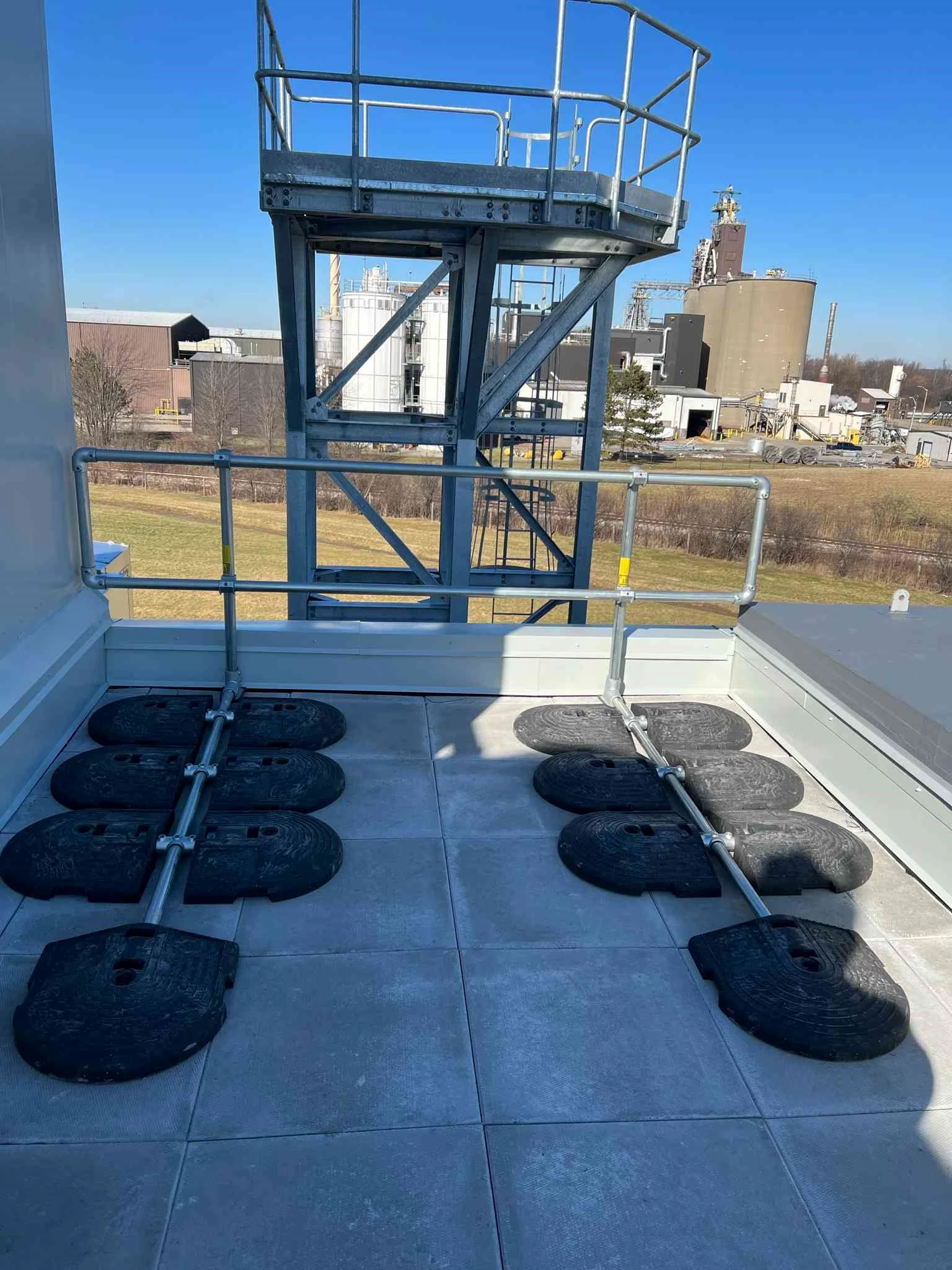

Kee Guard^® for Ladder Access

Why do you need Kee Guard Rooftop Guardrail?

Highly versatile rooftop fall protection

Offers the best stability for all standard rooftop fall protection systems including membrane, metal profile, and standing seam roofs. It’s also very flexible and can be used on everything from complex roof shapes to those that change in elevation. Rooftop guardrail protection from Kee Guard separates your people from hazards.

Easy to install

To assemble Kee Guard, you will need a torque wrench or hex key, making it incredibly easy to install. Once in place, it is a safe, versatile system that delivers reliable leading edge rooftop fall protection.

Longevity is the Standard

The hot-dipped, galvanized finish is corrosion-resistant and requires little-to-no maintenance for safe, dependable, and trouble-free rooftop guardrail edge protection. Kee Guard safety railing offers long-term rooftop fall protection solutions.

Cantilever design

Kee Guard is built using counter-weight engineering. Its simple cantilever design provides superior strength and safety in even the harshest of environments. In addition, the heavy-duty bases are manufactured using eco-conscious, recycled PVC.

How Kee Guard is Assembled

See just how easy it is to assemble our Kee Guard system onto your roof space.

Key features of Kee Guard Safety Railing

A Freestanding Rooftop Guardrail System

Kee Guard provides passive fall protection without penetrating the roofing material.

OH&S Compliant

Exceeds Canada Occupational Safety and Health Regulations, SOR/86-304, Sections 12.01 to 12.09 for fall protection.

Exceeds 200 lbs/ft requirements

Tested beyond the minimum weight standards to give you and your workforce peace of mind.

Suitable For Many Roof Types

Can be fitted to concrete, asphalt, PVC, membrane and felt roof surfaces up to 5 degrees without penetrating.

Modular Design

If your fall protection needs modification on-site (before or after installation), the system can easily be reconfigured.

Corrosion Resistant

All fittings are galvanized to EN ISO 1461 and equipped with case hardened steel setscrews. The horizontal rails are galvanized inside and out, and outlast standard galvanized pipes 4:1 in salt spray tests.

Multiple Color Options

Available in a full range of powder-coated RAL colors to suit your building aesthetics.

Very Adaptable

Kee Guard's versatile design makes it a snap to negotiate around unforeseen rooftop obstacles.

Kee Guard Downloads

Document	Format
KeeGuard Brochure	PDF Download
Rooftop Fall Protection Solutions Brochure	PDF Download
Rooftop Imposed Load Calculation	PDF Download
KeeGuard - 3 Part Specification	PDF Download
Railing Certificate	PDF Download
KeeGuard Installation and Operating Instructions	PDF Download
Safety Solutions For Data Centres	PDF Download

Document	Format
KeeGuard Brochure	PDF Download
Rooftop Fall Protection Solutions Brochure	PDF Download
Safety Solutions For Data Centres	PDF Download

Document	Format
Rooftop Fall Protection Solutions Brochure	PDF Download

Document	Format
Rooftop Imposed Load Calculation	PDF Download
KeeGuard - 3 Part Specification	PDF Download

Document	Format
Railing Certificate	PDF Download

Document	Format
KeeGuard Installation and Operating Instructions	PDF Download

Highest standards for off-the-ground safety railing solutions

Federal [Canada] Canada Occupational Safety and Health Regulations, SOR/86-304, Sections 12.01 to 12.09
Alberta Occupational Health and Safety Code, 191/2021 Part 9, Fall Protection Sections 138 - 161
British Columbia Occupational Health and Safety Regulations, B.C. Reg. 296/97 Part 11, Fall Protection, Sections 11.1 to 11.10
Manitoba Workplace Safety and Health Regulation, Man. Reg. 217/2006 Part 14, Fall Protection, Sections 14.1 to 14.29
New Brunswick General Regulation -N.B. Reg. 91-191 Part VII, Protective Equipment, Sections 49 - 51
Newfoundland and Labrador Occupational Health and Safety Regulations, 2012, N.L.R. 5/12 Part X, Fall Protection, Sections 138 to 146
Northwest Territories Occupational Health and Safety Regulations, R-039-2015 Part 7, Personal Protective Equipment, Sections 103 to 109 and Part 9 Safeguards, storage, warning signs and signals, Sections 118 to 124
Nova Scotia Workplace Health and Safety Regulations, N.S. Reg. 52/2013 Part 21, Fall Protection, Sections 21.1 to 21.4

Nunavut Occupational Health and Safety Regulations. R-039-2015, Part 7 Sections 104 to 109, and Part 9, Sections 118 to 122
Ontario Construction Projects, O. Reg. 213/91 Sections 26 - 26.9 and Industrial Establishments, R.R.O. 1990, Reg. 851 Section 85
Prince Edward Island Fall Protection Regulations, EC2004-633
Quebec Regulation respecting occupational health and safety, O.C. 885-2001 Division XXX, Means and Equipment for Individual and Group Protection Sections 347 - 354.1 And Safety Code for the construction industry R.R.Q. 1981, c. S-2.1, r. 6 Division II, General Provisions Sections 2.9.1 to 2.9.3, Safety measures
Saskatchewan Occupational Health and Safety Regulations, 2020 Sections 9-2 - 9-5
Yukon Occupational Health and Safety Regulation, O.I.C. 2006/178 Protective Equipment and Clothing - Fall Arrest Sections 1.37 to 1.43

Kee Safety was able to help overcome all the obstacles of working at a busy hospital, providing a great rooftop guardrail solution that will keep our roof warranty intact.

Ryan Molitor, Project Manager

Frequently Asked Questions

- Are toeboards available on the Kee Guard system?

  Yes, a toeboard can be supplied at the customer’s request.
- Is Kee Guard required by law?

  Building owners and employers are responsible for protecting their workers from any hazard encountered while on the job. In jobs requiring access to roofs for maintenance purposes, fall protection is usually required if workers will be exposed to a fall hazard. Will installation of Kee Guard reduce insurance premiums? Insurance premiums are often impacted by steps taken by the building owner to reduce hazards to their workers. More importantly, building owners’ liability will be strictly examined if an industrial accident occurs and preventative measures (such as Kee Guard) were not taken.
- Can the Kee Guard system be painted?

  Kee Guard components can be painted by the customer before or after installation. Kee Guard components are also available powder coated in any RAL color at the customer’s request (extra charges apply for powder coating). Powder coating takes place prior to shipment.
- Can Kee Guard be used as an anchor?

  The Kee Guard system is not intended as an anchor and cannot be used as an anchor or tie off point to support any workers or equipment suspended off the roof.
- Does the Kee Guard system comply with the current US and Canada safety regulations?

  The Kee Guard system has been tested to comply with and exceed US OSHA and Canada OH&S codes.
- Does the Kee Guard system offer advantages over a horizontal life line system or harness system?

  Yes. Kee Guard Roof Edge Fall Protection Railing System is a passive, collective fall protection system that is preferred by safety consultants. Lives have been lost in work-related falls resulting from workers not using harnesses properly. The Kee Guard system removes the potential of that risk. Harness systems require training and proper and regular use. The embedded anchor for a harness system could later leak and cause costly water damage. The worry of not having enough harnesses for rooftop workers is eliminated.
- Is Kee Guard more expensive than using a harness/tie-off system?

  When you consider the ongoing cost of training and system re-certification, the installed cost of Kee Guard is competitive with horizontal life line systems.
- How do I buy the Kee Guard system?

  Each Kee Guard System is individually engineered for your premises. Contact us directly with the information on this website.
- Can the Kee Guard system be installed on a sloped roof?

  Kee Guard Standard can be used on any style of flat roof with a slope up to 3 degrees.
- How long does it take to install Kee Guard? Are special skills or tools required?

  With the use of the new Kee Guard open style fitting (standard), two workers with minimal experience and simple hand tools can be installed up to twice as fast as most other systems. All materials should be delivered to the rooftop using a hoist, crane or other mechanical methods. No power tools are required.
- Is Kee Guard intended for temporary or permanent installation?

  The system is intended as a permanent fall protection solution, however since it is a modular system, the system can be disassembled and moved if needed or for maintenance tasks.
- Are all the materials used in the Kee Guard system protected from corrosion?

  Galvanized pipe is used for vertical, horizontal and counterbalance supports and Kee Klamp fittings are all galvanized at our factory. The grub screws used to assemble the fittings and pipes together are all protected by Kee Koat^® which is a special corrosion-resistant coating. KeeGuard fall protection system is engineered using special fittings and is designed to withstand a full range of outdoor conditions.
- How does the Kee Guard system stay on the roof if it isn’t bolted through the roof membrane?

  The system employs a tested and proven counterbalance system, the Kee Guard system (Patents in effect) is a roof edge railing fall protection system that keeps the workers on the roof without endangering the roof membrane itself.
- What prevents the counterweights from sinking into tar/gravel roof surfaces in hot climates?

  Each Kee Guard counterbalance weighs only 30 pounds and has an insulating rubber pad on the underside which is installed at the factory. Each counterbalance is spaced sufficiently to make the entire system deliver less weight per square foot than the average worker who might have to walk on the roof.

Kee Guard Gallery

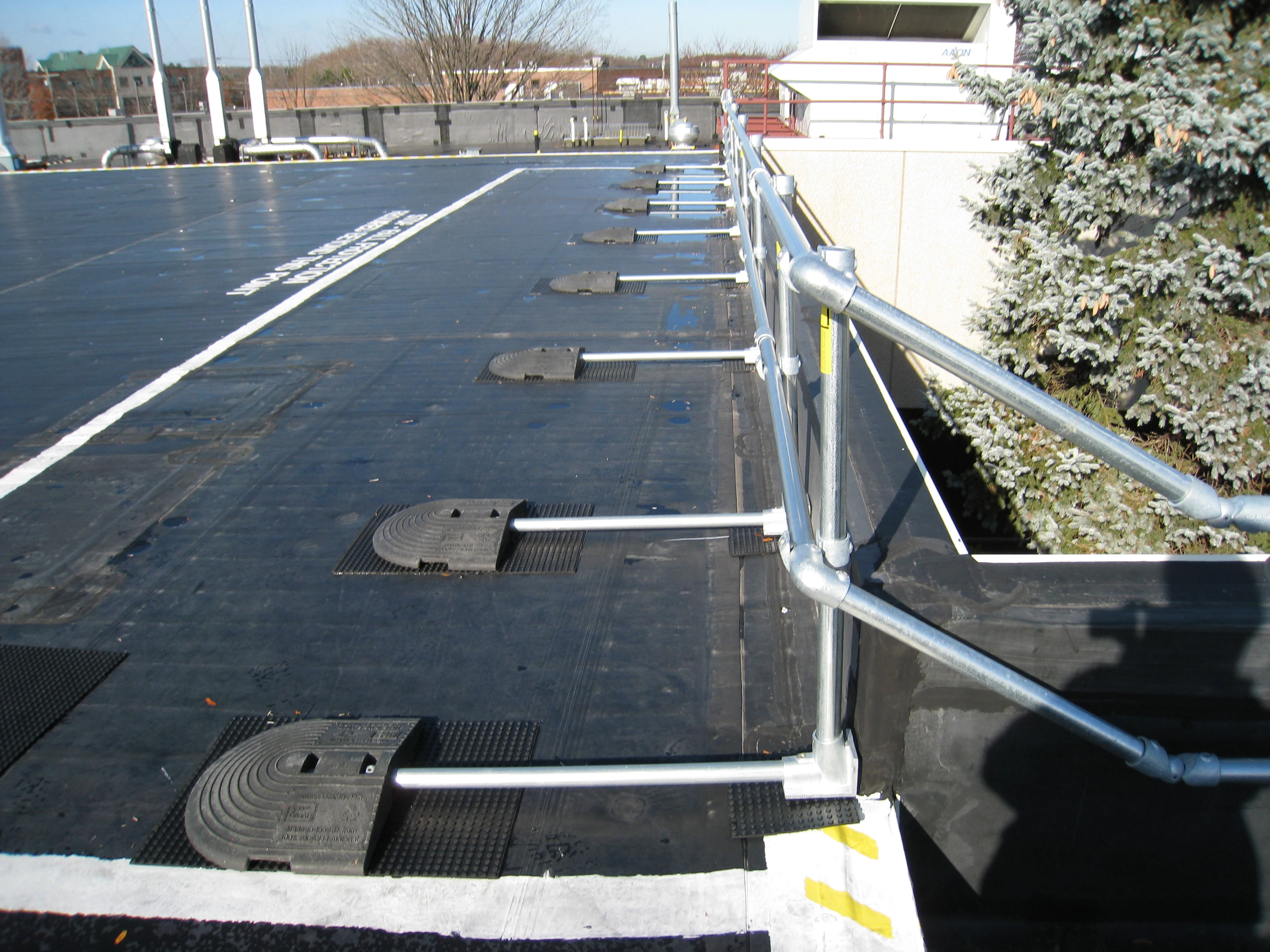

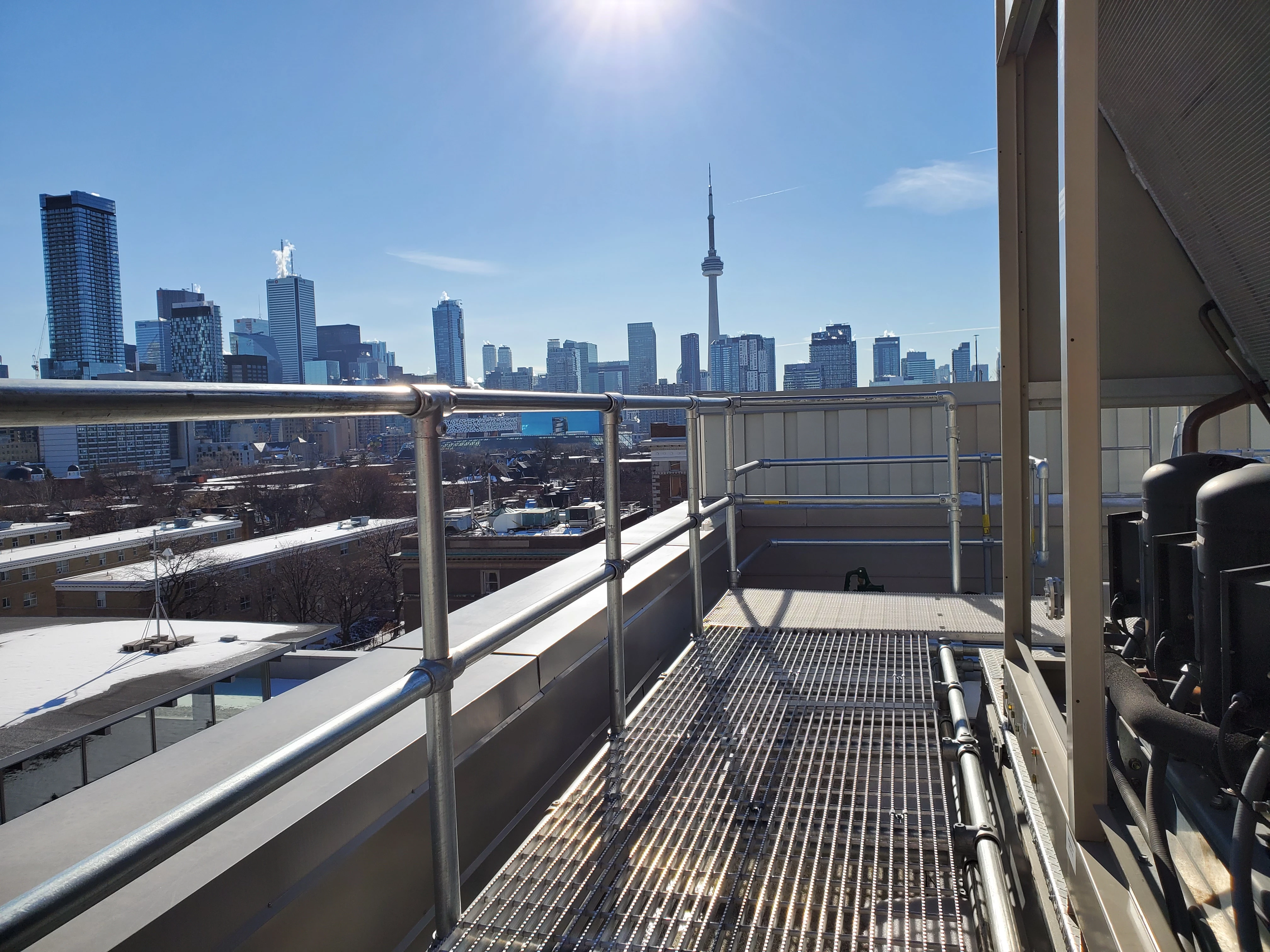

KeeGuard on Toronto Rooftop | rooftop fall protection | safety rail | safety guardrail | rooftop railings | collective fall protection

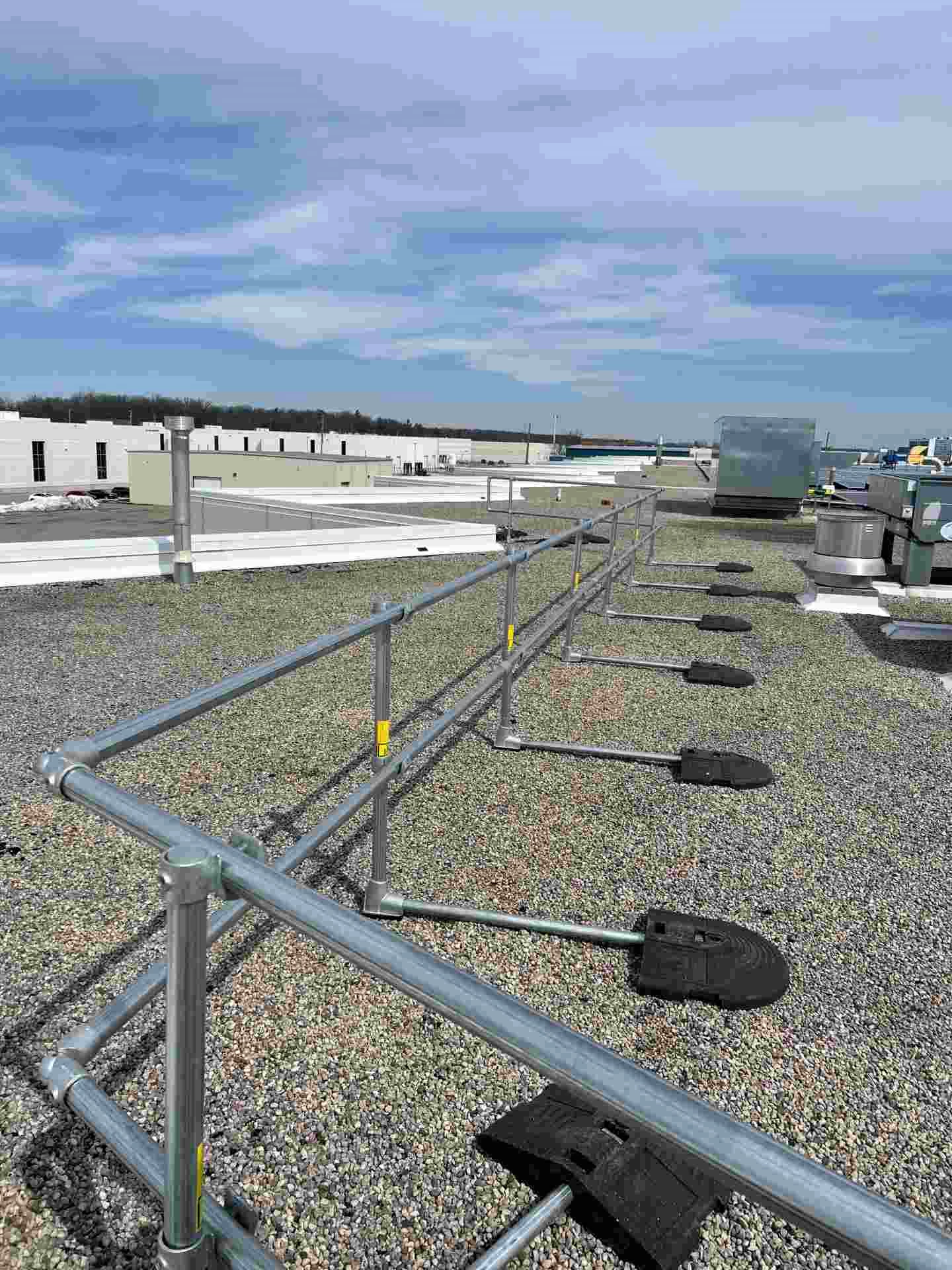

Kee Guard / Unprotected Roof Edge / Fall Protection / Roof Guardrail / Roof Fall Protection / Roof Fall Protection Canada

KeeGuard Roof Guardrail | rooftop fall protection | safety rail | safety guardrail | rooftop railings | collective fall protection

Kee Guard / Unprotected Roof Edge / Guardrail / Roof Guardrail / Roof Fall Protection / Roof Fall Protection Canada

rooftop fall protection | safety rail | safety guardrail | rooftop railings | collective fall protection | KeeGuard

Kee Step / Unprotected Roof Edge / Fall Protection / Roof Guardrail / Roof Fall Protection / Roof Fall Protection Canada

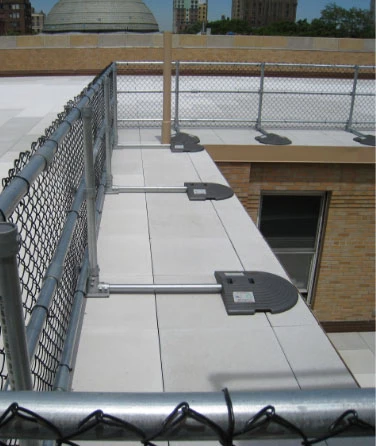

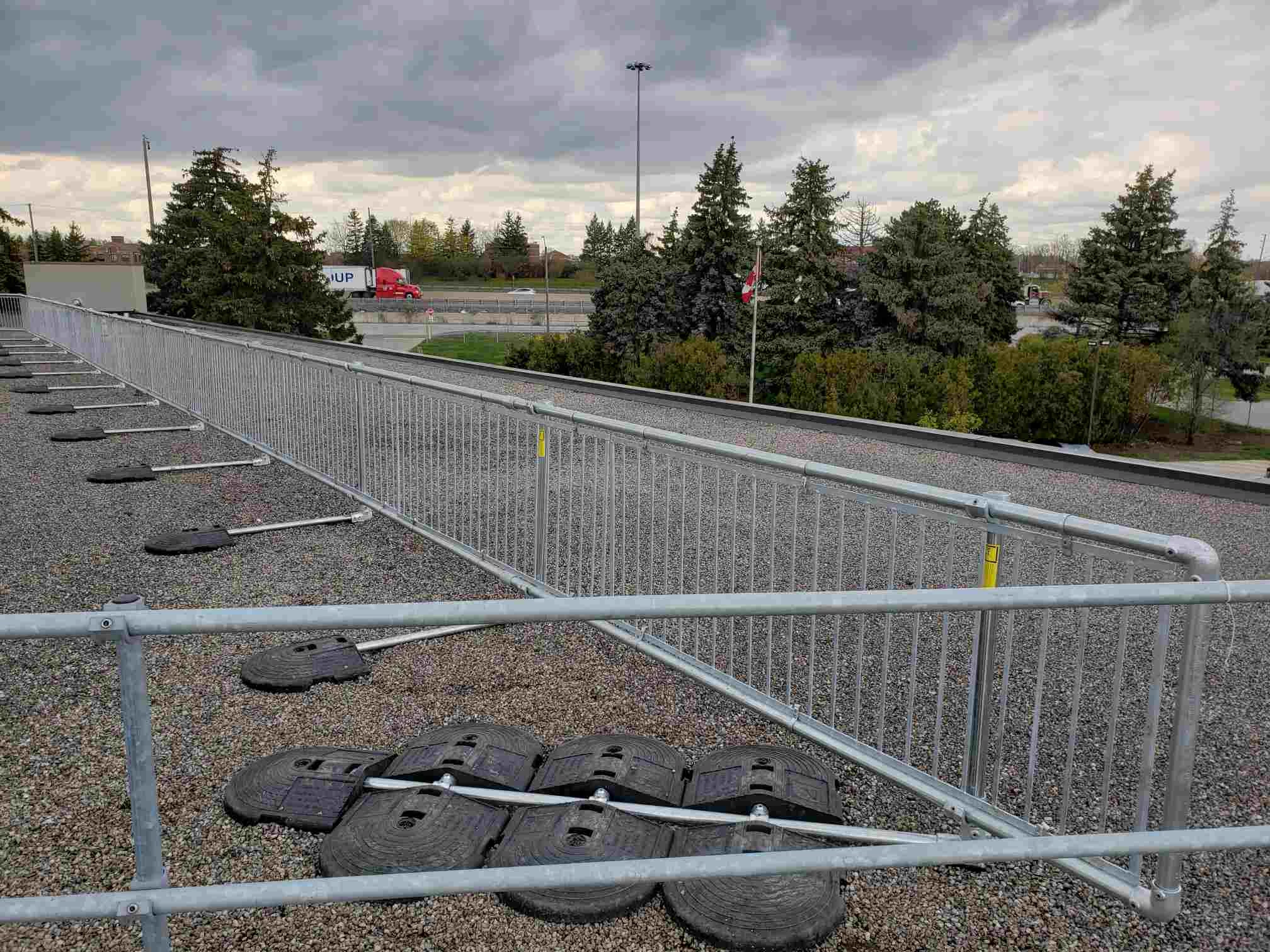

Kee Guard with Chainlink Infill | rooftop fall protection | safety rail | safety guardrail | rooftop railings | collective fall protection

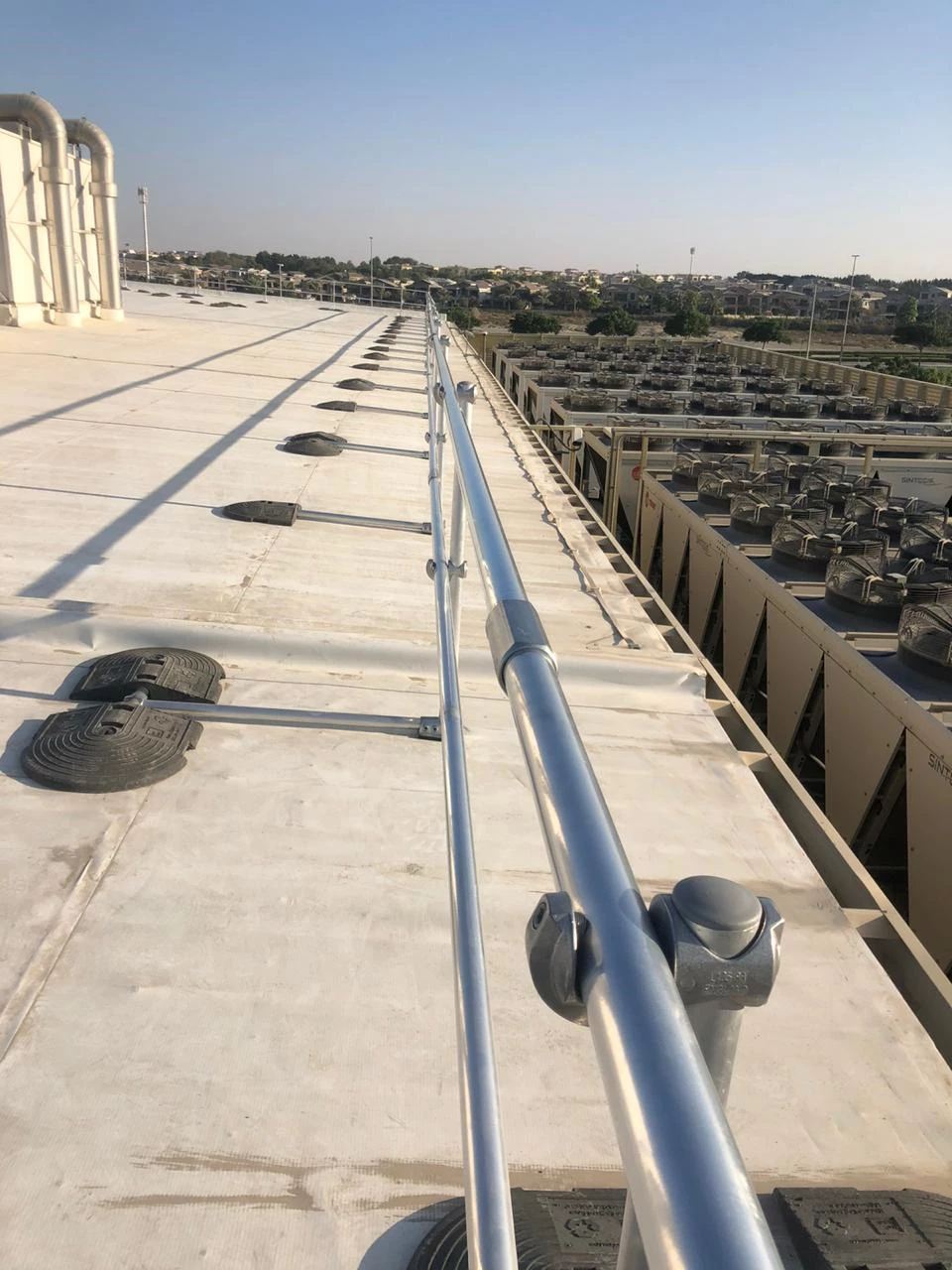

KeeGuard Rooftop Safety Guardrail - Safety Rail | roof fall protection | rooftop guardrail | fall protection equipment

Design and Installation

We offer full design and installation services that include a complete on-site survey. Also, we can produce comprehensive shop drawings to help you visualize the end result. With our detailed project outline, you can be confident that your project is professionally specified, and that all safety concerns and standards are addressed to your satisfaction.

Alternatively, you can specify and install KeeGuard yourself with our easy-to-follow instructions – it all starts with a call to our knowledgeable staff!
