Kee Klamp® Galvanized Slip-on Fittings & Components

Engineered Steel Fittings

The engineering principle behind the Kee Klamp^® fitting is the foundation of the most versatile tube connection system available. There are many variations of tubular fittings to suit a wide range of applications, providing the versatility to achieve any structural configuration.

Benefits of Kee Klamp Fittings

Enhanced durability

Our steel fittings are hot-dipped galvanized so every connection remains solid and lasts for decades. All fittings go through rigorous quality control processes that include detailed inspections throughout the manufacturing process. The result is incredible longevity and strength.

Simple to adapt

Kee Klamp is modular so it can be easily configured and installed precisely as you need it to be. The setscrew can easily be loosened and tightened to give flexibility in the construction process. Unline other pipe-based structures, no threading is required.

Engineered strength

Welding can be complicated and expensive. Ensuring that welds are inspected properly calls for specialized labor. Kee Klamp fittings eliminate the need for welding and deliver a strength that is engineered to defined standards.

Kee Klamp Catalogue

Get the Details

Download our complete catalog of Kee Klamp fittings. This catalog contains the most up-to-date technical information about the size, weight, and usage of Kee Klamp fittings.

Download the Kee Klamp Catalogue

Key features of Kee Klamp

Simple Installation

Kee Klamp fittings contain several set screws that are tightened onto pipe with a simple hex key.

Corrosion Resistant

Kee Klamp pipe fittings are galvanized to BS 729 (ISO 1461) and ASTM A153 which can last for over 30 years.

Wide Variety

Kee Klamp offers the most comprehensive range of slip-on pipe fittings on the market. Our product development team continues to launch new fittings regularly.

Fast Availability

Kee Klamp fittings are stocked in large quantities right here in Canada. Our availability and variety is unmatched in the industry.

The History of Kee Klamp Fittings

New Fittings

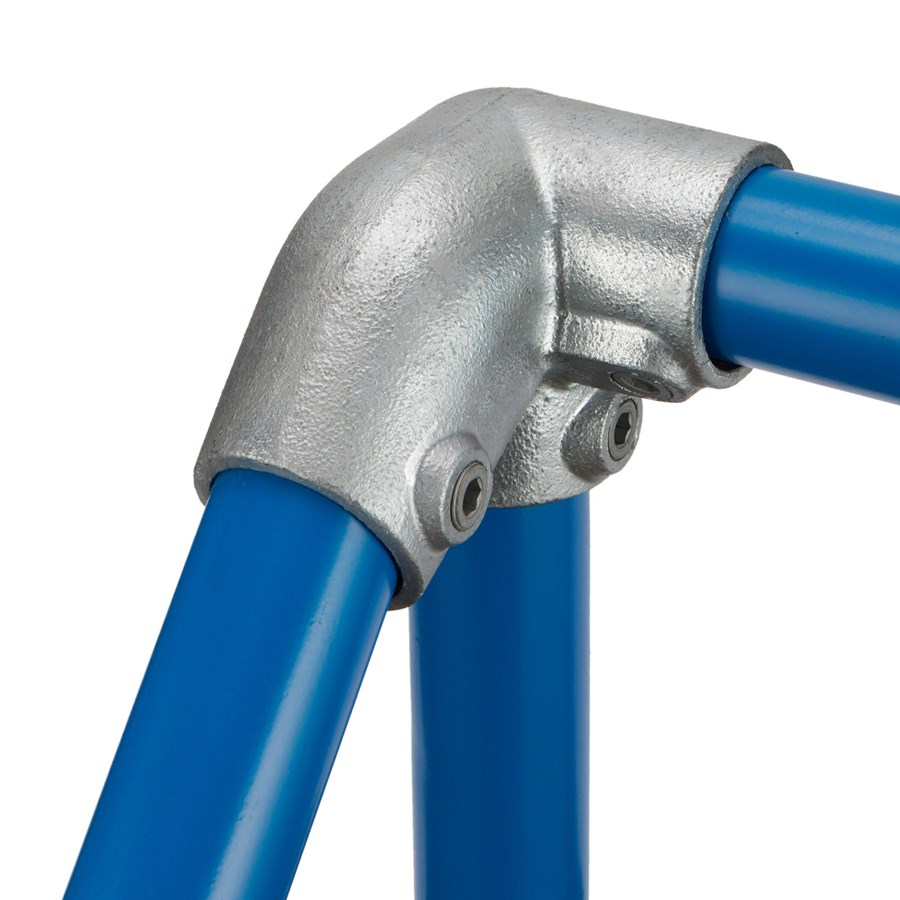

Kee Klamp^® Slope Fittings

We have expanded our Kee Klamp® fittings range and introduced 12 new components. The new Kee Klamp® fittings have been designed for installation on steeper gradients, they offer builders and specifiers an aesthetically pleasing option.

The new Kee Klamp® slope fittings have been designed to enhance the building of guardrails along staircases and ramps, particularly when the slope is greater than 30 degrees. The new range introduces single fittings to cater for situations where in the past a combination of fittings was required. Not only does this improve the aesthetics of the finished guardrail but it also allows for a quicker and easier installation.

Download Our Catalogs

Designed and Manufactured to Industry Standards

Federal [Canada] Canada Occupational Safety and Health Regulations, SOR/86-304, Sections 12.01 to 12.09
Alberta Occupational Health and Safety Code, 191/2021 Part 9, Fall Protection Sections 138 - 161
British Columbia Occupational Health and Safety Regulations, B.C. Reg. 296/97 Part 11, Fall Protection, Sections 11.1 to 11.10
Manitoba Workplace Safety and Health Regulation, Man. Reg. 217/2006 Part 14, Fall Protection, Sections 14.1 to 14.29
New Brunswick General Regulation -N.B. Reg. 91-191 Part VII, Protective Equipment, Sections 49–51
Newfoundland and Labrador Occupational Health and Safety Regulations, 2012, N.L.R. 5/12 Part X, Fall Protection, Sections 138 to 146
Northwest Territories Occupational Health and Safety Regulations, R-039-2015 Part 7, Personal Protective Equipment, Sections 103 to 109 and Part 9 Safeguards, storage, warning signs and signals, Sections 118 to 124
Nova Scotia Workplace Health and Safety Regulations, N.S. Reg. 52/2013 Part 21, Fall Protection, Sections 21.1 to 21.4

Nunavut Occupational Health and Safety Regulations. R-039-2015, Part 7 Sections 104 to 109, and Part 9, Sections 118 to 122
Ontario Construction Projects, O. Reg. 213/91 Sections 26 - 26.9 and Industrial Establishments, R.R.O. 1990, Reg. 851 Section 85
Prince Edward Island Fall Protection Regulations, EC2004-633
Quebec Regulation respecting occupational health and safety, O.C. 885-2001 Division XXX, Means and Equipment for Individual and Group Protection Sections 347 - 354.1 And Safety Code for the construction industry R.R.Q. 1981, c. S-2.1, r. 6 Division II, General Provisions Sections 2.9.1 to 2.9.3, Safety measures
Saskatchewan Occupational Health and Safety Regulations, 2020 Sections 9-2 - 9-5
Yukon Occupational Health and Safety Regulation, O.I.C. 2006/178 Protective Equipment and Clothing - Fall Arrest Sections 1.37 to 1.43

Kee Klamp Downloads

Document	Format
Components for Safety Barrier Solutions Brochure	PDF Download
Safety Components Guide	PDF Download
Kee Klamp - Three Part Specification	PDF Download
Kee Klamp Installation Guide	PDF Download

Document	Format
Components for Safety Barrier Solutions Brochure	PDF Download
Safety Components Guide	PDF Download

Document	Format
Kee Klamp - Three Part Specification	PDF Download

Document	Format
Kee Klamp Installation Guide	PDF Download

Become a Kee Klamp Distributor

Strengthen our global network by becoming an authorized distributor of Kee Klamp fittings.

Become a distributor

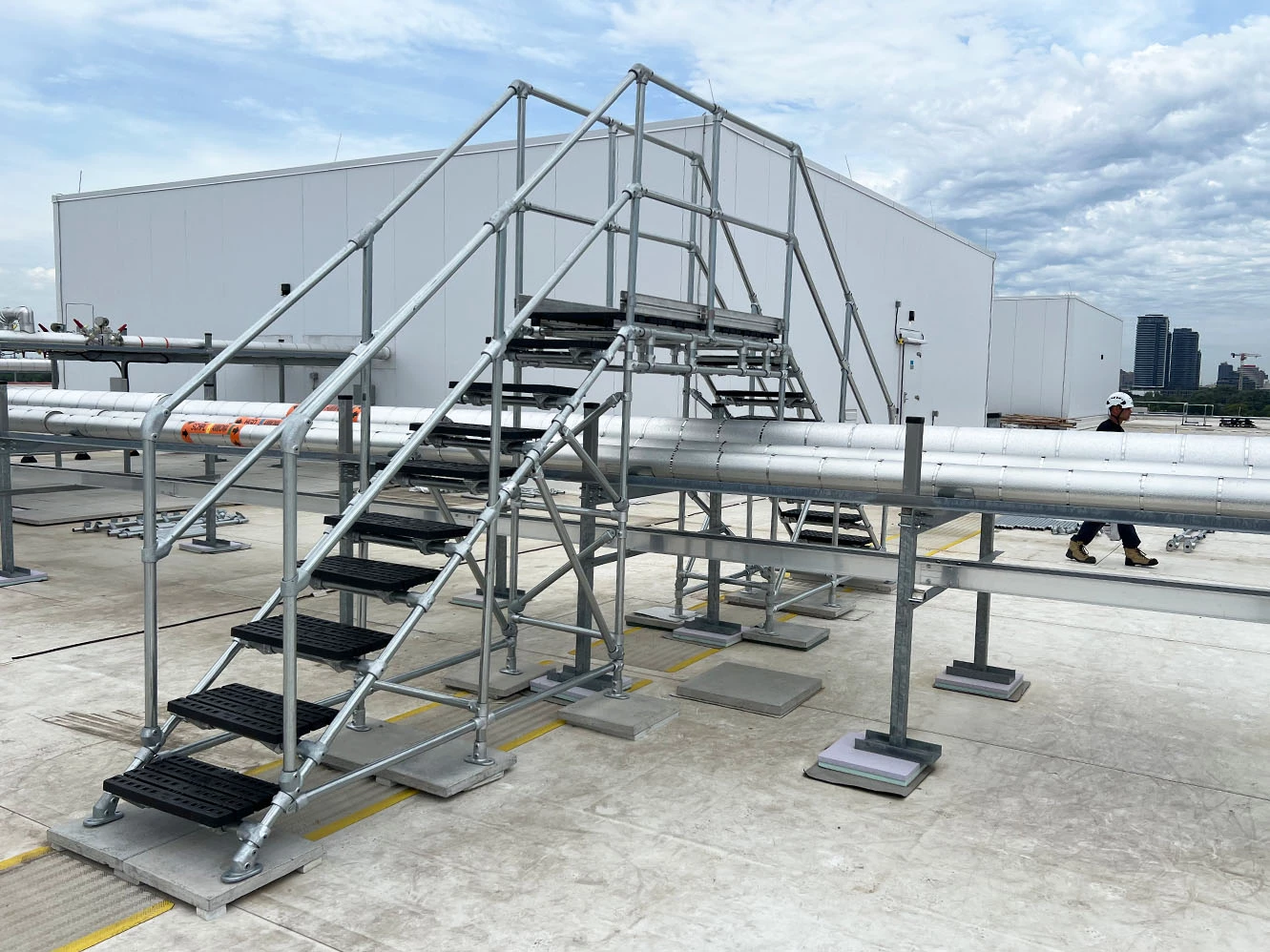

Ensuring Campus Safety at Toronto Metropolitan University

Toronto Metropolitan University, situated in the heart of Canada’s largest city, is renowned for its urban campus and innovative culture. As part of an ongoing initiative to enhance safety compliance, the university sought to implement new safety measures across its campus rooftops in preparation for an upcoming health and safety inspection audit.

Fall Protection / Kee Gate / Kee Lite / Safe Access

Ensures Worker Safety with Kee Gate and Kee Lite Solutions for Pump Stations

Kee Safety’s solutions provided the customer with the ideal safety upgrades for their pump stations. By delivering a modular, efficient, and compliant system, we addressed their challenges of securing hazardous areas near pipelines while maintaining operational continuity.

Kee Step / Crossover / Fall Protection / Roof Fall Protection / Roof Fall Protection Canada

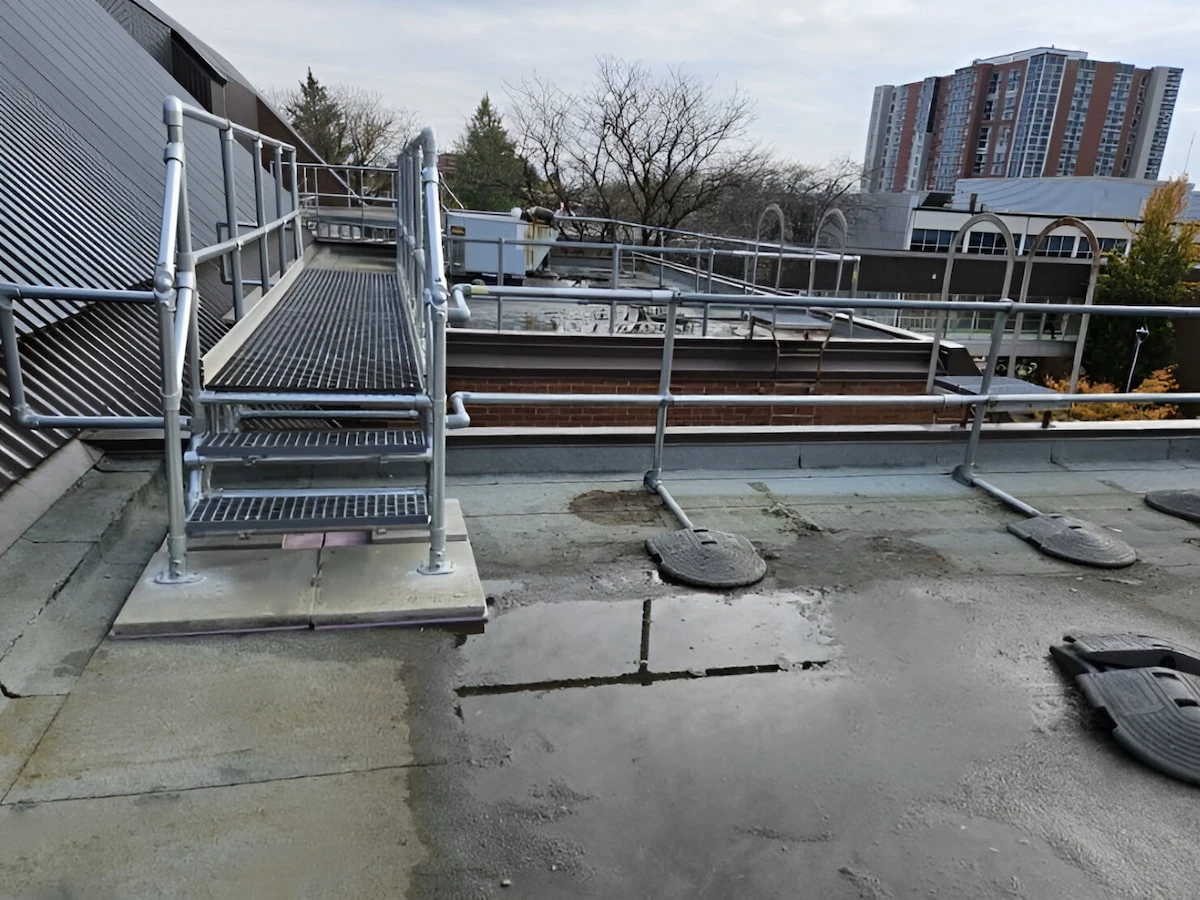

College Enhances Maintenance Efficiency with Kee Safety’s Crossover and Guardrail

Fanshawe College, one of Ontario's largest educational institutions, sought a solution to enhance safety and accessibility on their campus. With over 43,000 students enrolled annually, the college needed a practical way to access mechanical units across two connected rooftops. Kee Safety was approached to provide a non-penetrating, easy-to-install platform allowing workers to service these units safely and efficiently. Fanshawe, a returning customer, opted for our rooftop access solution due to its versatility and ease of installation.

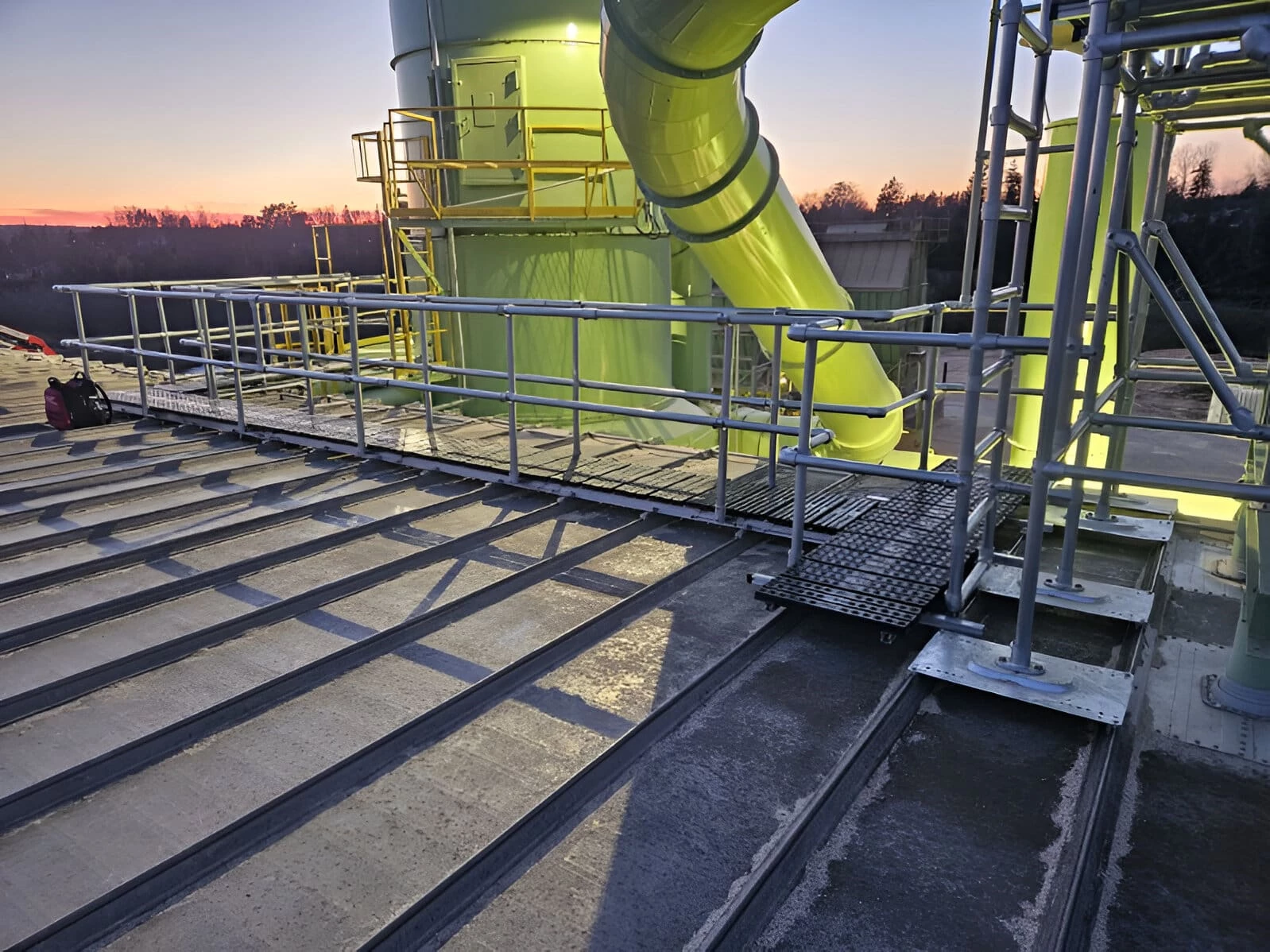

Protecting Workers at a Wastewater Treatment Plant with Kee Lite Aluminum Railings

Kee Safety partnered with Terus, a diversified transportation infrastructure and heavy civil construction company, to enhance worker safety at a wastewater treatment plant. The plant required a proper guard railing system around the wastewater areas to protect its workforce and comply with safety regulations in the newly constructed zones. Kee Safety provided a modular aluminum railing system, Kee Lite, which was ideal for the remote location and matched the existing concrete structures.

Kee Platform / Work Platform / Fall Protection

Customized Work Platform Provides Safe Access for Inspection

By implementing Kee Platform, Walker Glass successfully enhanced the safety of their operations while maintaining efficiency and aesthetics in their facility.

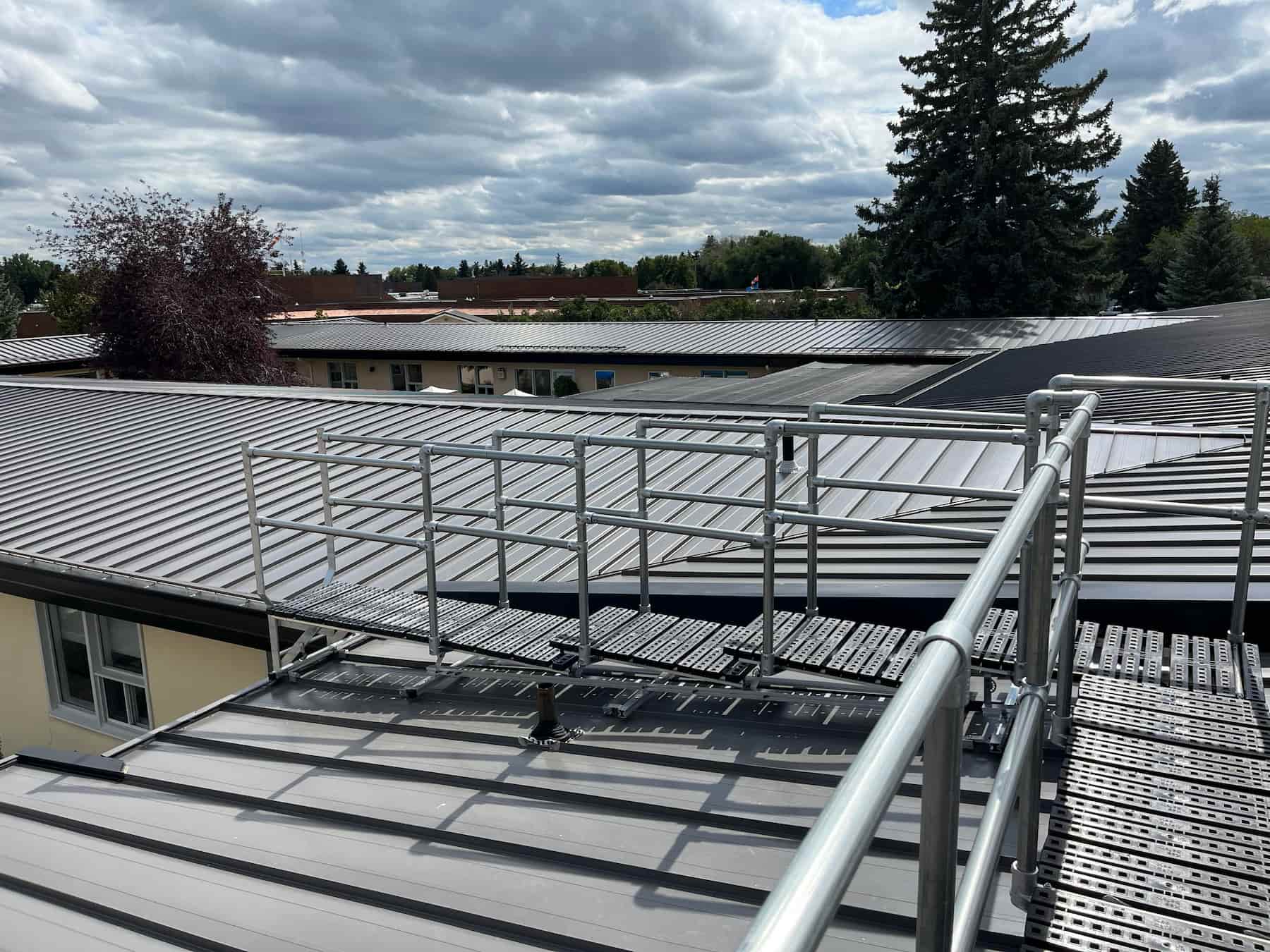

Kee Step / Rooftop Crossovers / Fall Protection / Rooftop Safety

Safely Overcome Rooftop Obstacles with Kee Step for Grocery Store

By implementing Kee Step, they were able to complete their project successfully while ensuring safe, long-term access for maintenance of the essential HVAC systems.

Kee Walk / Guardrail / Roof edge fall protection / Rooftop safety railings

Enhancing Worker Safety with Kee Walk & Access Platform Solutions

J.D. Irving, Limited (JDI) is a renowned company that operates in Canada and the United States. With a workforce of over 19,000 employees, JDI has diverse business units, including Agriculture, Construction & Equipment, and Forestry. They approached Kee Safety with a requirement for safe and reliable access solutions in their sawmill in Nova Scotia.

Enhancing Safety with the Installation of Kee Pivot Pallet Gate for Mezzanine Access

Kee Safety responded swiftly, offering the Kee Pivot pallet gate as an effective fall prevention solution; the system improved worker safety and operational efficiency. This partnership not only addressed Aevitas' safety concerns but also highlighted our commitment to providing reliable and timely safety solutions.

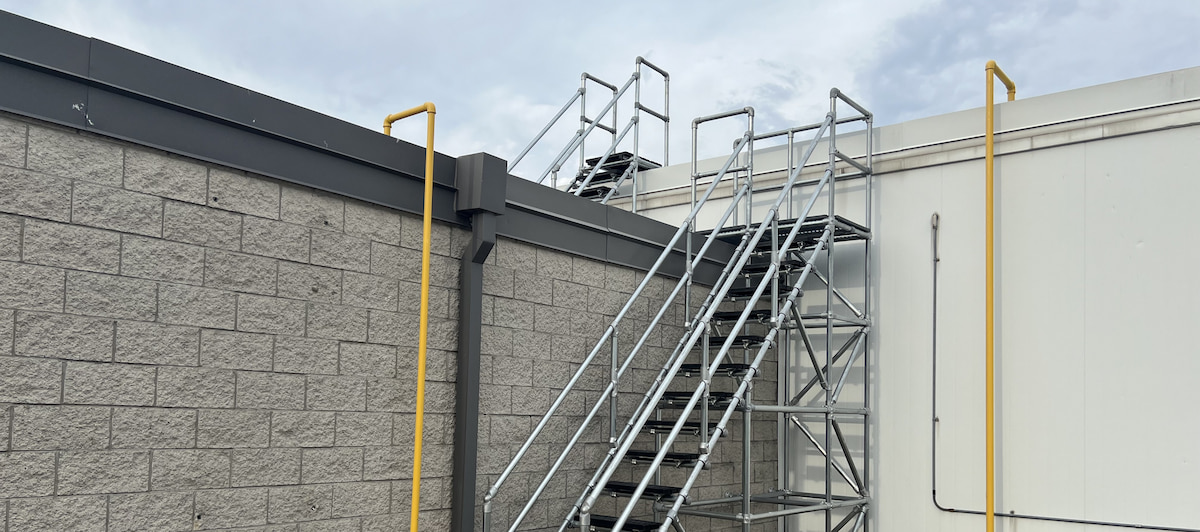

Kee Platform Ensures Safe Rooftop Access for Retail Sector

A leading construction specialist in Western Canada collaborated with Kee Safety on a project to provide safe access to rooftop maintenance for a retail sector in Manitoba. The focus was to ensure that routine maintenance could be performed efficiently and securely on the rooftop plant.

Kee Klamp Safety Railings Installation at Ottawa Rail Station

Kee Safety was tasked by AtkinsRéalis, with providing a comprehensive safety solution for the Ottawa Rail Station, which was undergoing significant development. The primary objective was to ensure the safety of passengers by implementing a barrier between the platform and the train tracks.

Kee Guard / Guardrail for Narrow Spaces / Fall Protection / Roof Guardrails / Guardrail System

Safeguarding Limited Spaces on Roof Edge with Kee Guard for Gas and Oil Industry

The innovative Kee Guard design not only addressed the challenge of limited roof space but also elevated workplace safety standards for Enerflex's employees. They can now safely service all HVAC and mechanical units, essential for a Gas & Power supplier frequently providing such services.

Kee Guard / Fall Protection / Roof Guardrails / Guardrail System

Kee Guard Ensures Safe Access and Maintenance for Rooftop HVAC Equipment

Kee Safety successfully addressed the fall prevention needs of the retirement home, providing an efficient and reliable safety solution for HVAC maintenance on the rooftop. Throughout the installation process, Kee Safety's competent installers demonstrated adaptability and problem-solving skills, ensuring that the project was completed to the highest standards.

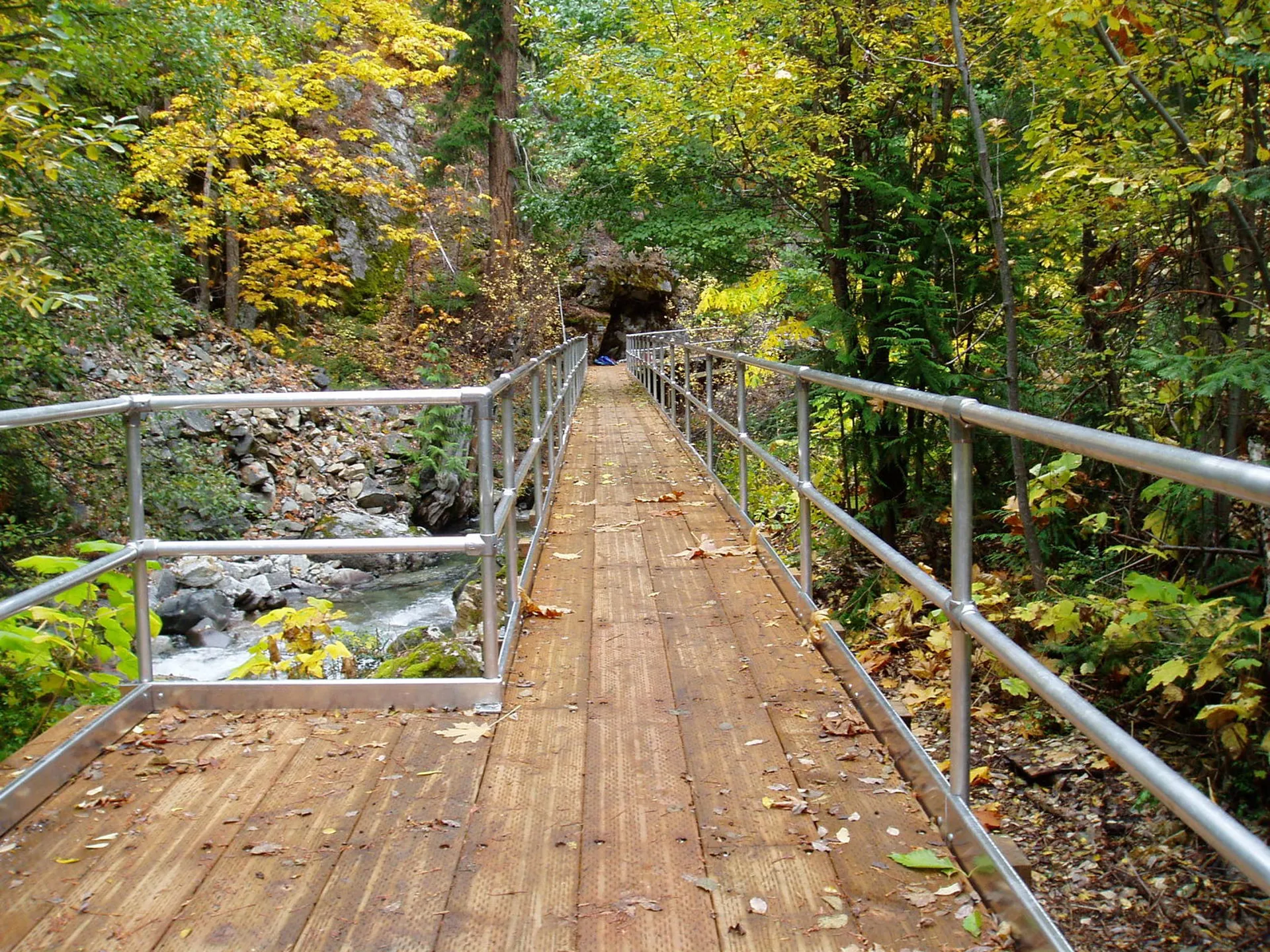

Example Kee Klamp Projects

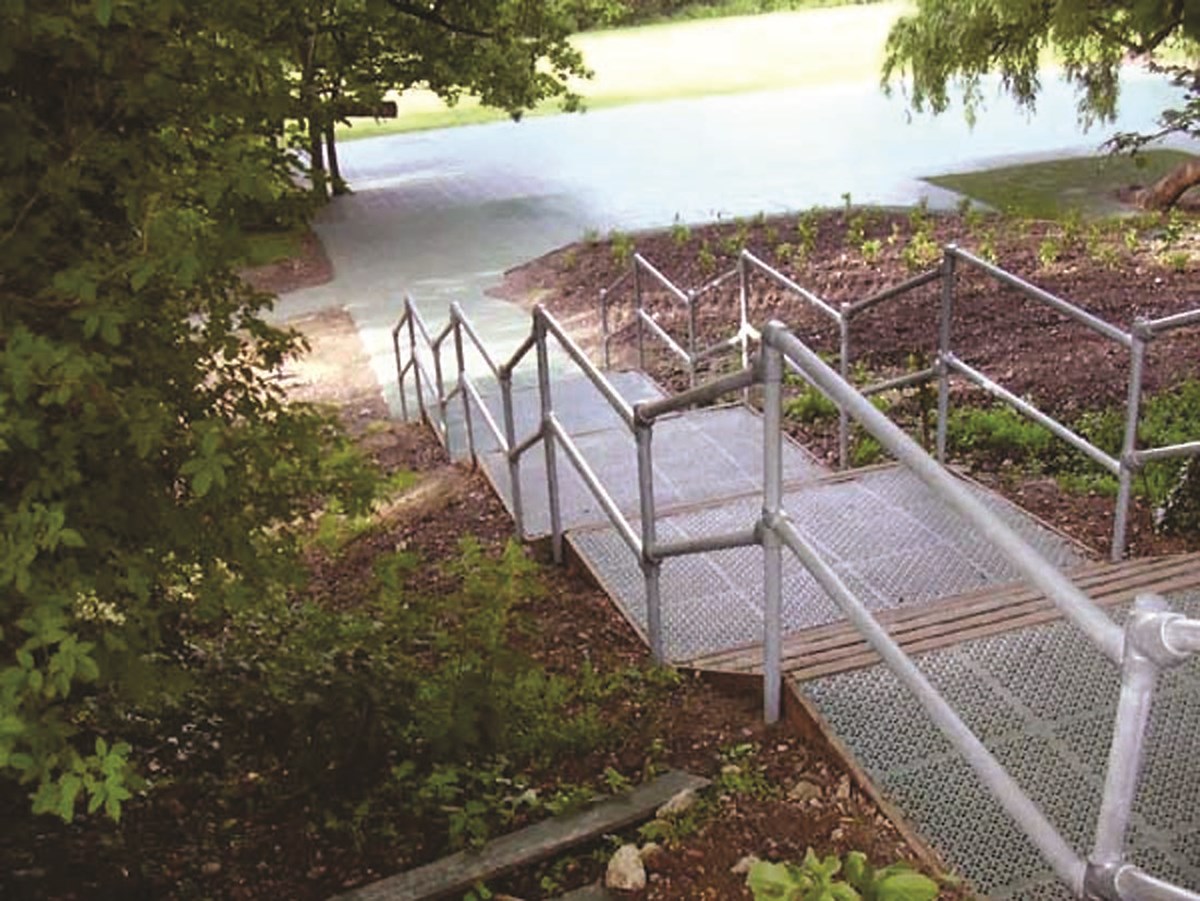

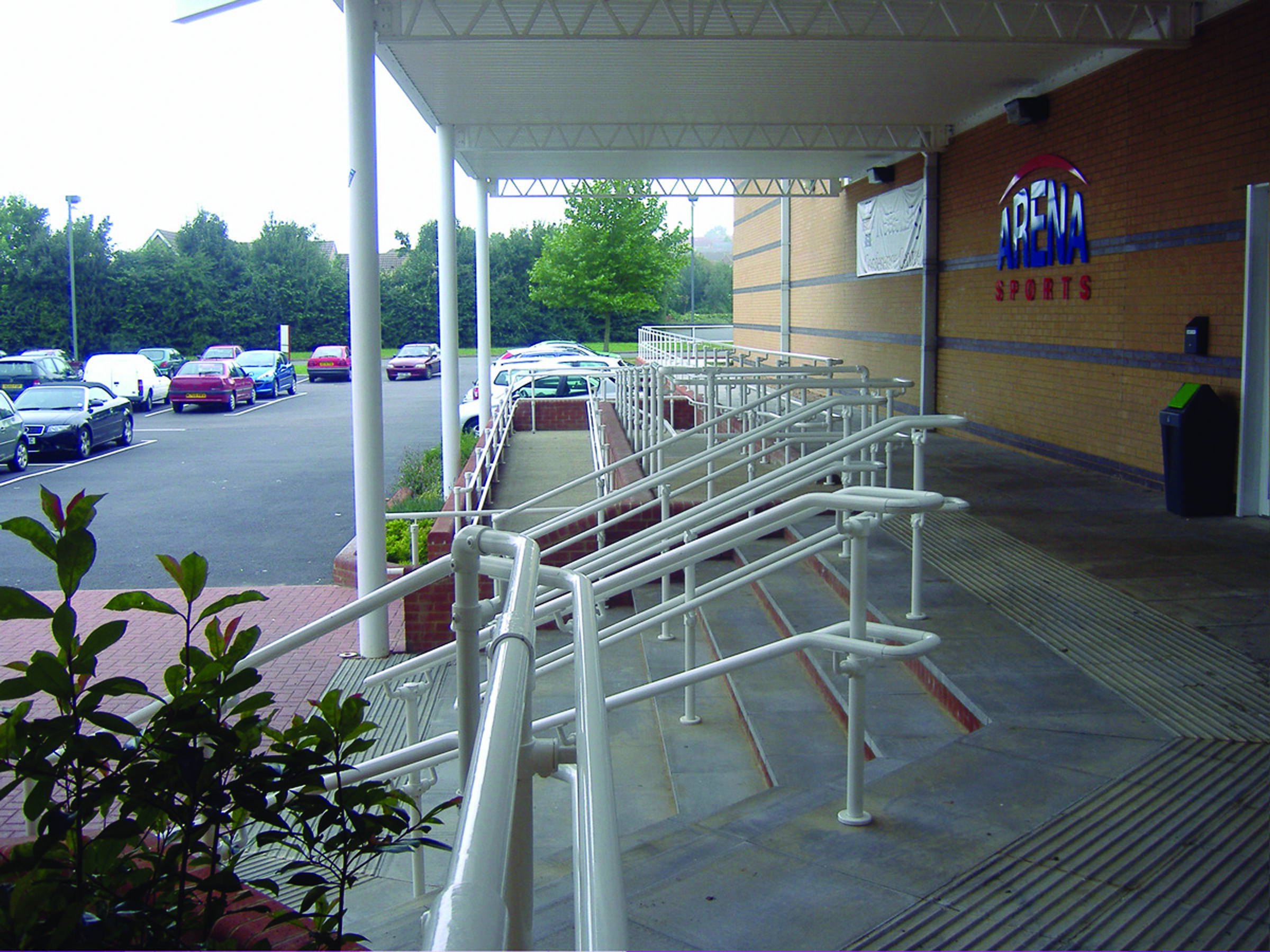

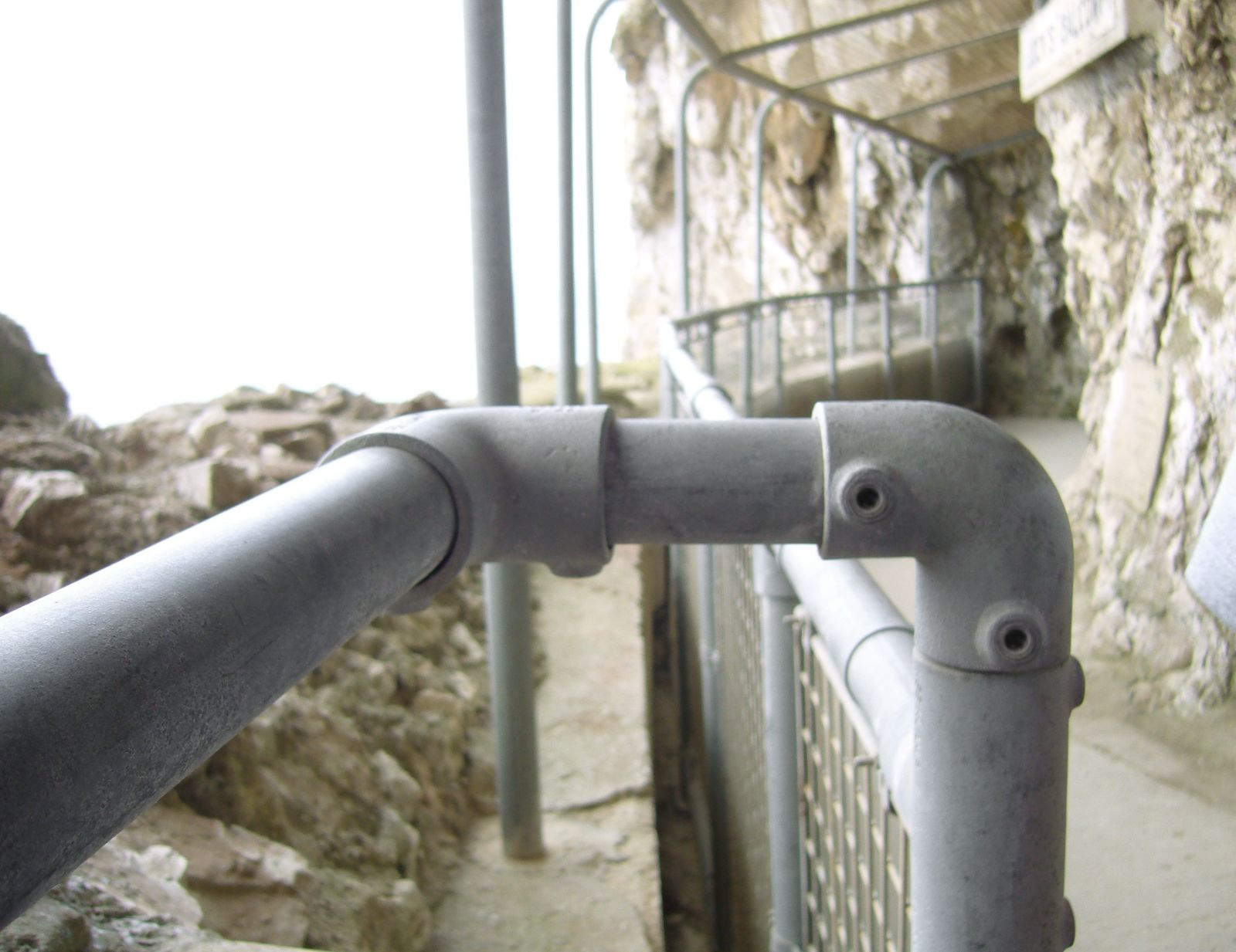

Kee Klamp safety railings on an outdoor stairway | tubular fittings

Frequently Asked Questions

- What are Kee Klamp components used for?

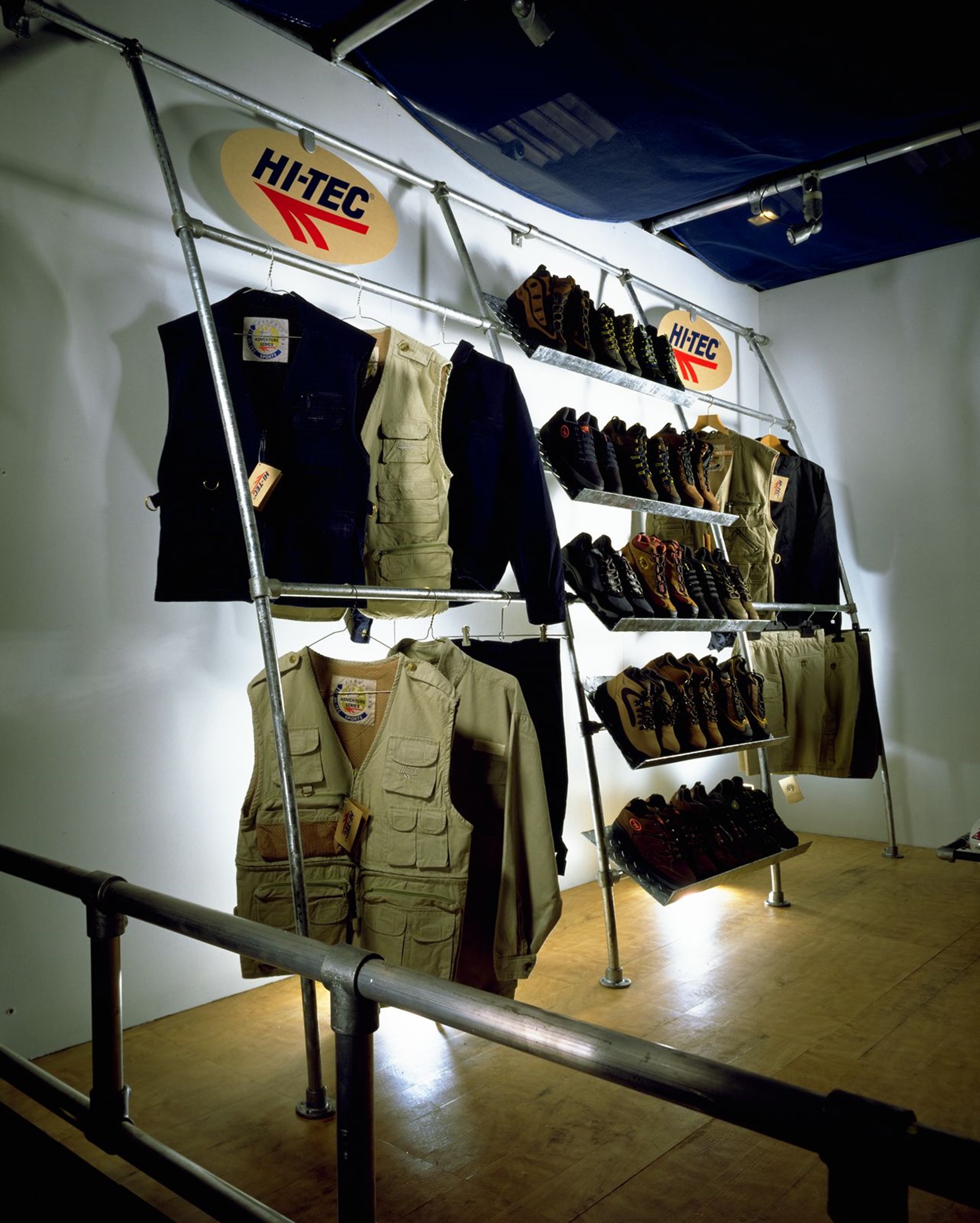

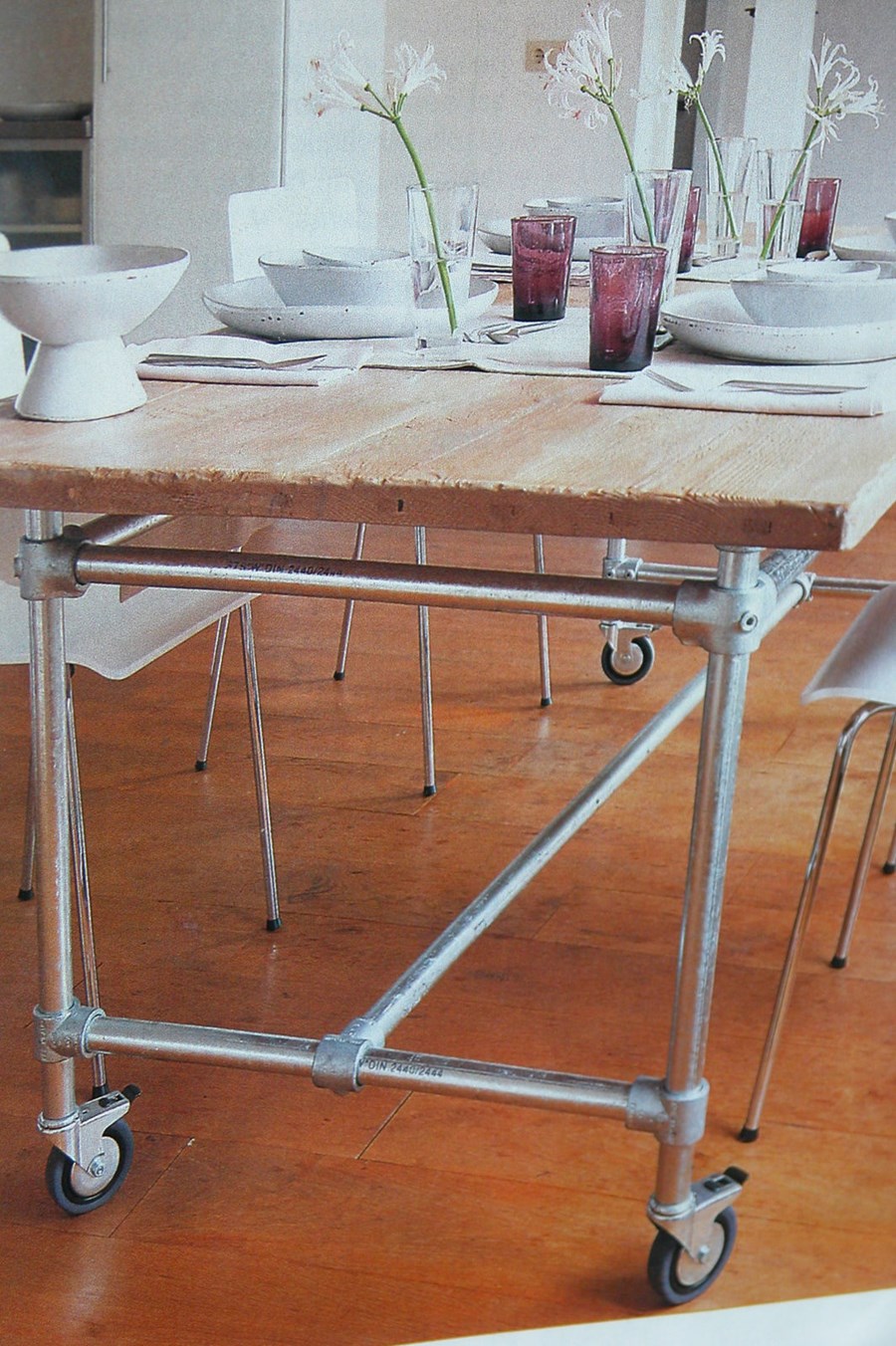

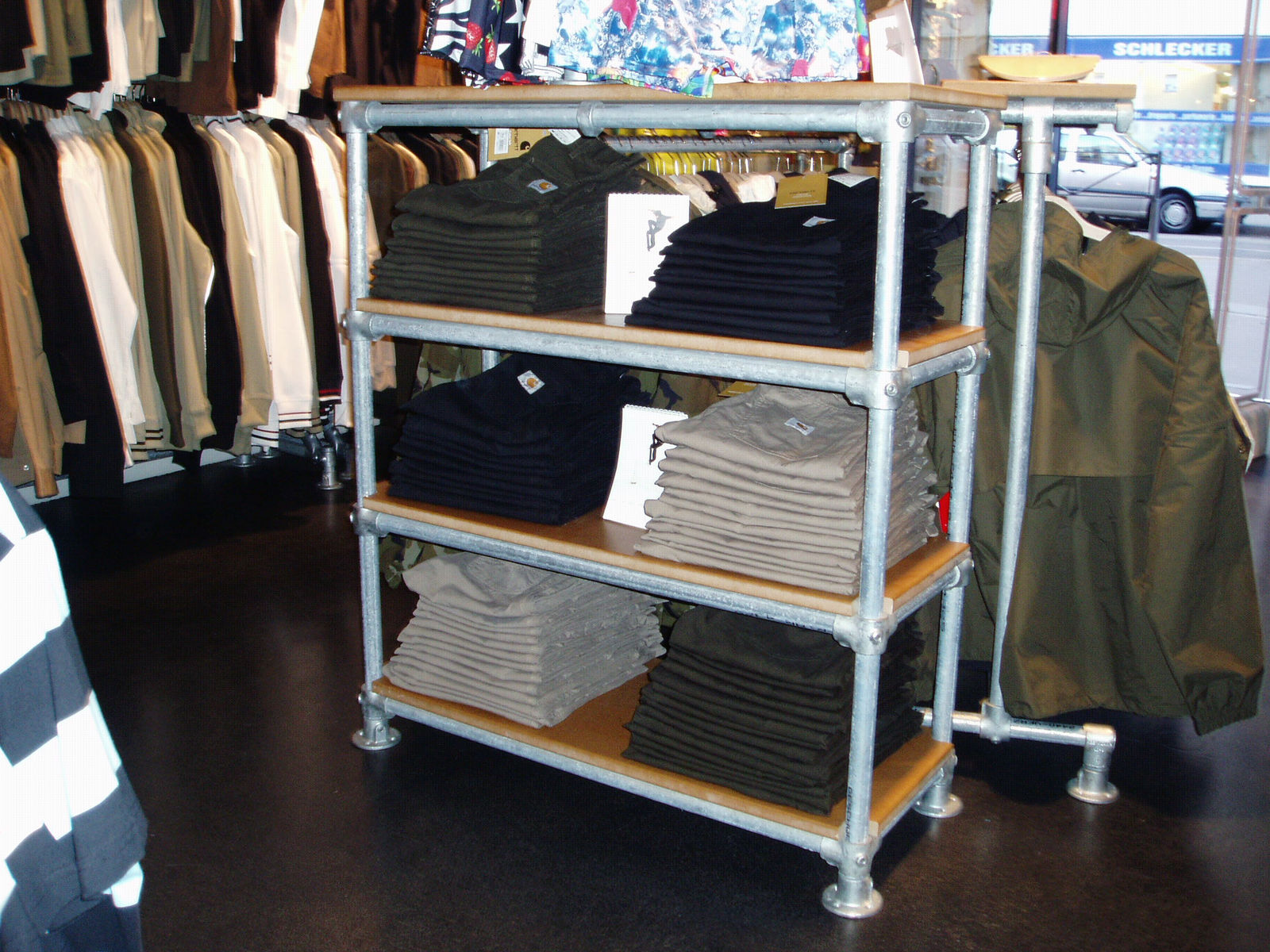

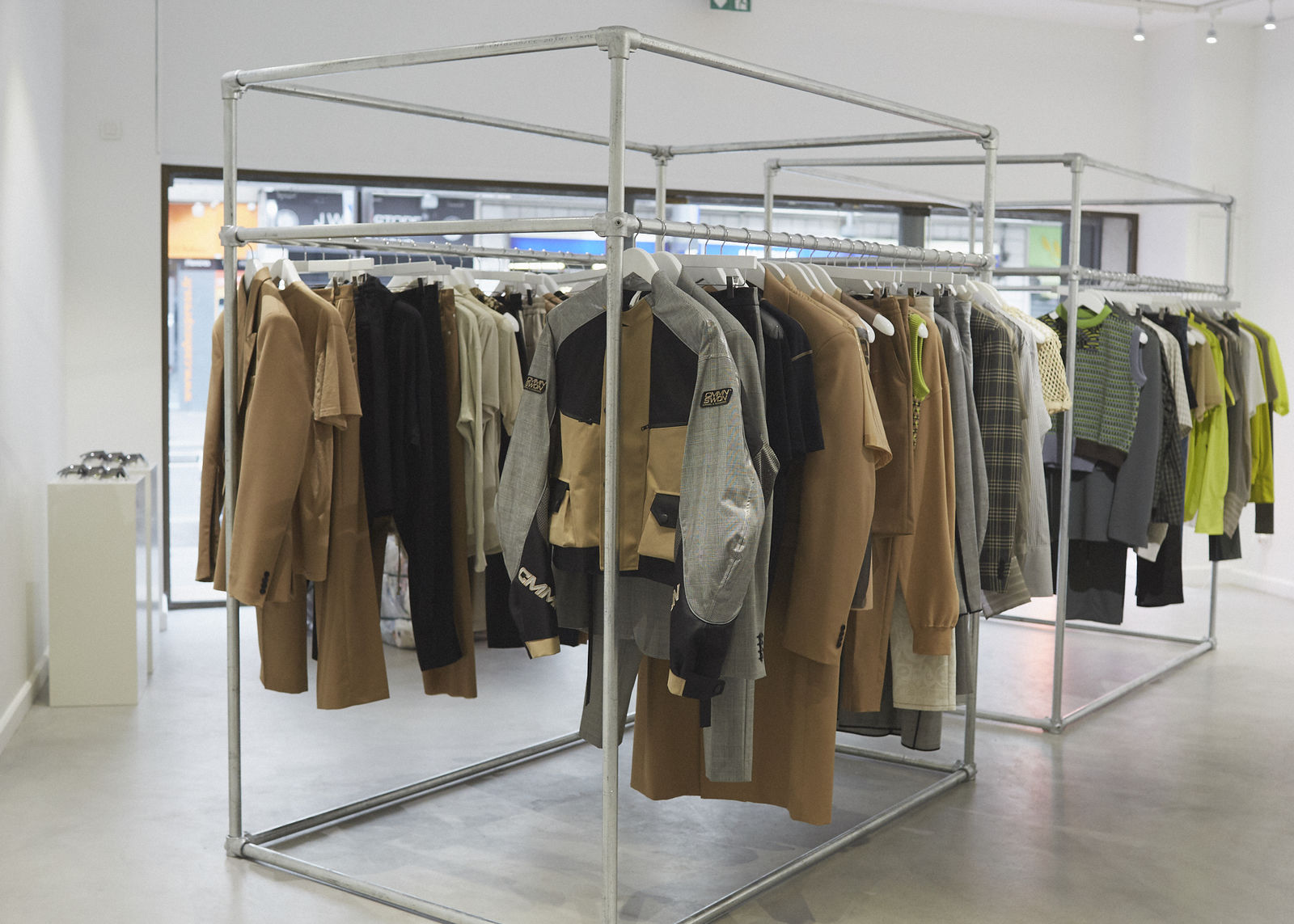

  With Kee Klamp components, you can build various tubular structures such as railing, racking, retail store fixtures, soft contained play systems, awning, fencing, machinery framework, and 1001 other applications.
- What is a Kee Klamp structural tube component?

  Kee Klamp slip-on tube components are cast-iron tube components, which conform to BS EN 1562/1563, SAE J158 A grade M3210, ASTM A47-77-32510. Kee Klamp components are used in conjunction with steel pipe to build structures of unlimited size and scope. Casehardened grub screws attach the fittings securely around the tube. There is no welding or drilling required when building with Kee Klamp components. Kee Klamp components are galvanised, making them ideal for indoor or outdoor use. The only tools required for building Kee Klamp structures are a tube cutter and a standard hex key.
- What style or types are available?

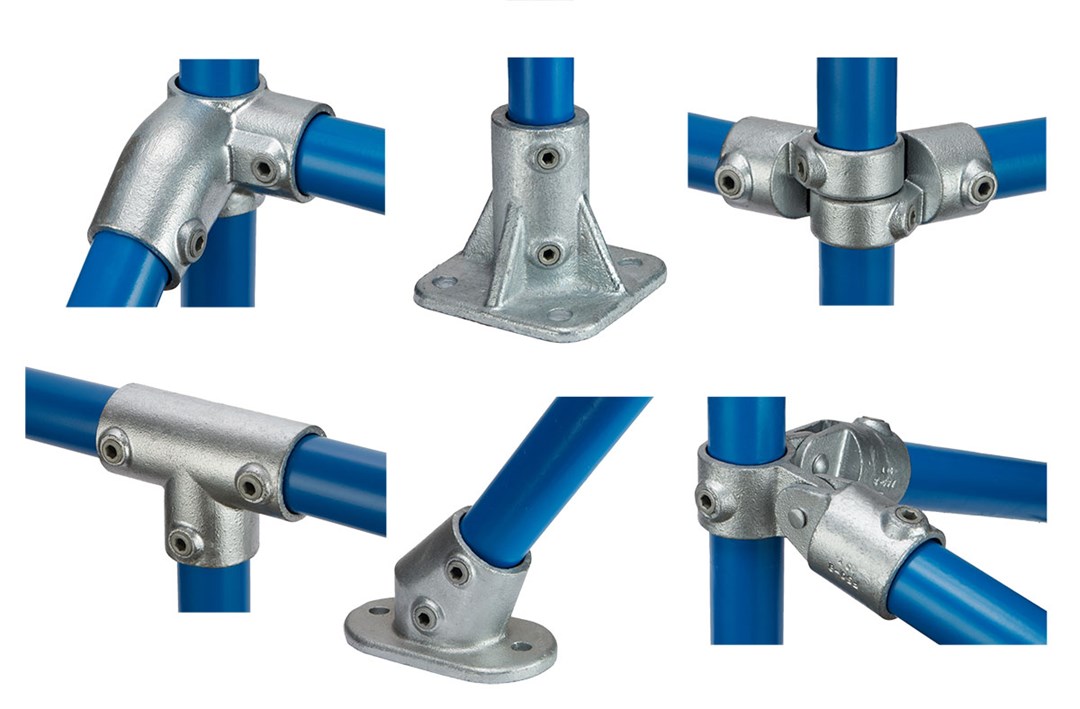

  Over sixty styles of Kee Klamp components are available to meet almost any structural tube needs. Visit our Online Catalog to view the available styles and types.
- Are there Kee Klamp components available to modify or extend an existing tube structure?

  Yes, Kee Safety has designed several add-on components for retrofitting existing tubular structures. Please call or email us with your specific need.
- What about the components being tampered with?

  Grub screw inserts are available to deter tampering with a finished Kee Klamp structure.
- What is the recommended torque for the grub screws?

  When constructing with Kee Klamp components we recommend that you tighten the grub screw to 29 lbs./ft. or 39 Nm. This is approximately "hand-tight."
- What size hex key is used with Kee Klamp components?

  Size 4 fittings use a 3/16" (4.76mm) A.F. (Across Flat) hex key, while Sizes 5 and 6 use a ¼" (6.35mm) A.F. hex key. Sizes 7, 8, and 9 fittings use a 5/16" (7.94mm) A.F. hex key.
- Will Kee Klamp components rust if used outdoors?

  Kee Klamp components are galvanized to BS 729 (ISO 1461) and ASTM A153 which can last for over 30 years. Kee Klamp grub screws are treated with our Kee Koat^® corrosion protection. The fitting recesses are also coated with our factory-applied, ThredKoat^®(patented), corrosion resistance.
- Are Kee Klamp components available with alternative finishes?

  Besides the long-lasting galvanized finish, Kee Klamp components can be powder coated to any RAL color.
- Can different sizes of tube be used when building tubular structures with Kee Klamp components?

  Yes, Kee Safety has designed several of its components with multiple sized barrels to allow for the utilisation of different sizes of pipe when building tubular structures.
- What are the structural design specifications when building with Kee Klamp components?

  An independent laboratory has tested Kee Klamp components in terms of load capacity and vibration resistance. Using these results, we have developed a series of structural design guidelines that must be followed when building with Kee Klamp components. These can be found in the "Tech Spec" section to the left.
- What quality certifications has Kee Safety attained?

  Kee Safety is certified to ISO 9001, the core Kee Klamp components have attained TUV certification.
